GENERAL XP 4 1000 SPORT GHOST GRAY SPECIFICATIONS
Find specifications below for the 2024 GENERAL XP 4 1000 Sport Ghost Gray Rec UTV. Specs include hitch type, towing capacity, payload capacity, engine type, horsepower, ground clearance, drive system type, fuel capacity, suspension, instrumentation, lighting, cargo system, bed box dimensions and capacity, wheels and tires.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | True On-Demand AWD/2WD/ VersaTracTurf Mode |
| Engine Braking System (EBS) | EDA: Engine Deceleration Assist |
| Engine Type | 4-Stroke DOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 100 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 27.5 x 43.1 x 11.6 in (69.8 x 109 x 29.5 cm) |
| Box Capacity | 600 lb (272 kg) Rear Dumping Box |
| Estimated Dry Weight | 1,951 lb (885 kg) |
| Fuel Capacity | 9.5 gal (35.9 L) |
| Ground Clearance | 13.5 in (34.3 cm) |
| Hitch Towing Rating | 1,500 lb (680 kg) |

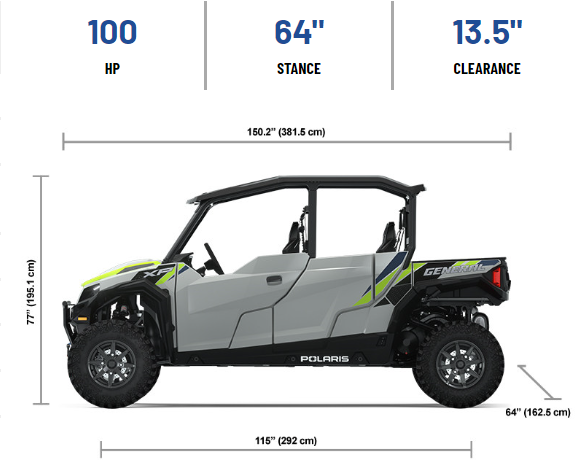

| Overall Vehicle Size (L x W x H) | 150.2 x 64 x 77 in (381.5 x 162.5 x 195.1 cm) |
| Payload Capacity | 1,100 lb (499 kg) |
| Wheelbase | 115 in (292 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® |
| Doors | Full Doors Standard |
| Electronic Power Steering | High Output EPS |
| Hitch Type | Standard 2 in (5.08 cm) Receiver |
| Instrumentation | Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet |
| Lighting | LED Headlight with Accent & LED Taillights |
| Other Standard Features | POLARIS HD 4500 LB Winch with Synthetic Rope, Aluminum Fairlead & Rubber Isolator, Sport Low Profile Front Bumper, ProFit Sport Roof |
| Seat Type | Bolstered Bucket Seats with Driver Seat Slider and Height Adjustable Seat Belts |
| TIRES / WHEELS | |
| Front Tires | 30 x 10-15; Pro Armor Crawler XGF |
| Rear Tires | 30 x 10-15; Pro Armor Crawler XGF |
| Wheels | 15 in Aluminum |
| SUSPENSION | |
| Electronic Suspension Control System | Not Equipped |
| Front Shocks | Walker Evans Velocity Series Shocks |
| Front Suspension | Long Travel, High Clearance Dual A-Arm with Stabilizer Bar, 14 in (35.6 cm) Travel |
| Rear Shocks | Walker Evans Velocity Series Shocks |
| Rear Suspension | Long Travel, High Clearance Dual Arm IRS with Stabilizer Bar, 14 in (35.6 cm) Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
