POLARIS XPEDITION XP NORTHSTAR MATTE HEAVY METAL SPECIFICATIONS
Find specifications below for the 2024 Polaris XPEDITION XP NorthStar Matte Heavy Metal side by side. Specs include hitch type, towing capacity, payload capacity, engine type, horsepower, ground clearance, drive system type, fuel capacity, suspension, instrumentation, lighting, bed box dimensions and capacity, cargo system and wheels and tires.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | N/A |
| Engine Type | ProStar 1000 Gen 2 4-Stroke DOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 114 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 30.3 x 47.25 x 13.38 in (77 x 120 x 34 cm) |
| Box Capacity | 600 lb (272 kg) Rear Dumping Box |
| Curb Weight | 2452 lbs. (1112 kg); California 2463 lbs. (1117 kg) |
| Dry Weight | 2331 lbs. (1057 kg); California 2342 lbs. (1062 kg) |
| Fuel Capacity | 12.5 gal (47.3 L) |
| Ground Clearance | 14 in (35.6 cm) |
| Hitch Towing Rating | 2,000 lb (907 kg) |
| Hitch Type | Standard / 2 in (5.08 cm) Receiver |

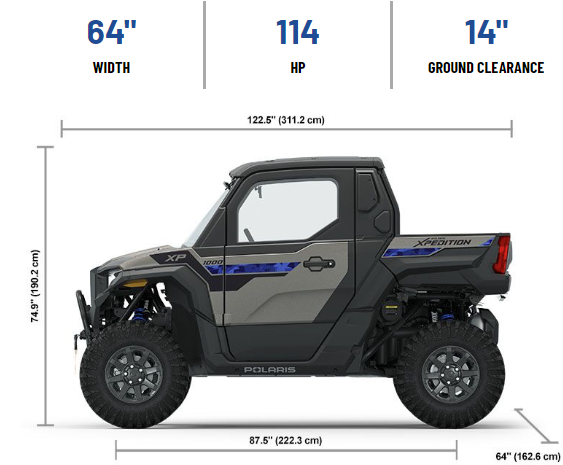

| Overall Vehicle Size (L x W x H) | 122.5 x 64 x 74.9 in (311.1 x 162.5 x 190.2 cm) |
| Payload Capacity | 1030 lbs. (467 kg) |
| Person Capacity | 2 |
| Stance | 64 in (162.56 cm) |
| Wheelbase | 87.5 in (222.2 cm) |
| BRAKES | |
| Front Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Audio System | JBL Trail Pro 4100 |
| Cargo System | Lock & Ride MAX |
| Electronic Power Steering | High Output EPS |
| Ingress / Egress | Full Power Window Doors Standard |
| Instrumentation | Driver Forward Information Center w/ 4 in Color Display + Rotary Speedometer & Tachometers and Center Dash 7 in Touchscreen w/ Ride Command+ Connected & Remote Features |
| Lighting | LED Headlight w/ Accent & LED Taillights |
| Other Standard Features | POLARIS HD 4500 LB Winch w/ Rope, Rubber stopper & Aluminum Fairlead, AutoStop & Plow Mode, Front Bull Bumper, ProFit Sport Roof, Convex Rear View Mirror, JBL Trail Pro 4100 Audio |
| Seat Type | Bolstered Bucket Seats with Driver Seat Slider |
| Steering | Tilt & Telescoping |
| Water Fording Height | 17.8 in (45.2 cm) |
| TIRES / WHEELS | |
| Front Tires | 30 x 10-15; Pro Armor Crawler XP |
| Rear Tires | 30 x 11-15; Pro Armor Crawler XP |
| SUSPENSION | |
| Front Shocks | FOX 2.0 Podium QS3 with Position Sensitive Spiral technology |
| Front Suspension | Long Travel, High Clearance Dual A-Arm with Stabilizer Bar, 14 in (35.6 cm) Travel |
| Rear Shocks | FOX 2.5 Podium QS3 with Position Sensitive Spiral technology |
| Rear Suspension | Long Travel, High Clearance Dual Arm IRS with Stabilizer Bar, 15 in (38.1 cm) Travel |
