RANGER 1000 SAGEBRUSH GREEN SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER 1000 Sagebrush Green UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Twin Cylinder SOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 61 HP |
| Torque | 55 LB-FT |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm) |
| Box Capacity | 1,000 lbs (453.6 kg); California 600 lb (272.2 kg) |
| Dry Weight | 1,437 lb (652 kg) |
| Front/Rear Rack | N/A |
| Fuel Capacity | 11.35 gal (43 L) |
| Ground Clearance | 12 in (30.5 cm) |
| GVW | 3,600 lb (1,632.9 kg) |
| Hitch Towing Rating | 2,500 lb (1,134 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |

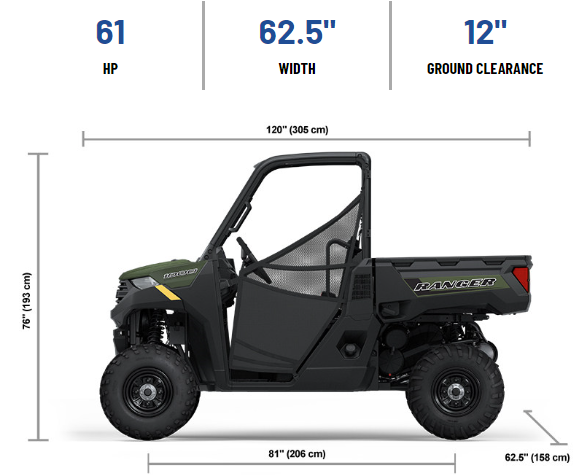

| Overall Vehicle Size (L x W x H) | 120 x 62.5 x 76 in. (305 x 158 x 193 cm) |
| Payload Capacity | 1,500 lb. (680.4 kg); California 1,100 lb. (498.9 kg) |
| Person Capacity | 3 |
| Water Fording Height | Equal to the Floorboards |
| Wheelbase | 81 in (206 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Not Equipped |
| Cargo System | Lock & Ride® |
| Color / Graphics | Sagebrush Green |
| Electronic Power Steering | Not Equipped |
| Gauge | B1 |
| Instrumentation | 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet |
| Lighting | Halogen Headlamps, 55W Low Beam, 60W High Beam, Dual LED Taillamps |
| Other Standard Features | Polaris Pulse Electrical System (3 position), Standard In-Dash SAE Charge Port |
| RIDE COMMAND+ | Available |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 25 x 10-12; Carlisle 489 |
| Rear Tires | 25 x 11-12; Carlisle 489 |
| Tire Ply Rating | 4 Ply Rated |
| Wheels | Stamped Steel |
| SUSPENSION | |
| Front Suspension | Dual A-Arm 10 in. (25.4 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS 10 in. (25.4 cm) Travel |
| Turning Radius | 13.3 ft (4.06 m) |
