RANGER CREW 1000 PREMIUM GRANITE GRAY SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER CREW 1000 Premium Granite Gray UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Twin Cylinder SOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 61 HP |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm) |
| Box Capacity | 1,000 lbs (453.6 kg) |
| Estimated Dry Weight | 1,794 lbs (814 kg) |
| Fuel Capacity | 11.35 gal (43 L) |
| Ground Clearance | 12.5 in (31.8 cm) |
| GVW | 3,750 lb (1,700.9 kg) |
| Hitch Towing Rating | 2,500 lb (1,134 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |

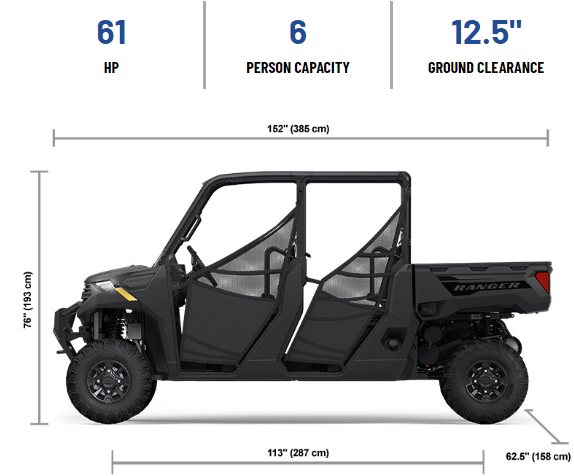

| Overall Vehicle Size (L x W x H) | 152 x 62.5 x 76 in. (386 x 158 x 193 cm) |
| Payload Capacity | 1,750 lb (793.8 kg) |
| Person Capacity | 6 |
| Wheelbase | 113 in (287 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Standard |
| Cargo System | Lock & Ride® |
| Color / Graphics | Granite Gray |
| Electronic Power Steering | Standard |
| Instrumentation | 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet |
| Lighting | Dual LED Headlamps, 600lm Low Beam, 1000lm High Beam, Dual LED Taillamps |
| Other Standard Features | Premium Cut & Sew Seats, Polaris Pulse Electrical System (3 position), Standard In- Dash SAE Charge Port. |
| RIDE COMMAND+ | Available |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 26 x 9-12; PXT 2.0 |
| Rear Tires | 26 x 11-12; PXT 2.0 |
| Tire Ply Rating | 6 Ply Rated |
| Wheels | Aluminum Black Xcelerator 2.0 |
| SUSPENSION | |
| Front Suspension | Dual A-Arm 10 in. (25.4 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS 10 in. (25.4 cm) Travel |
| Turning Radius | 17 ft (518 cm) |
