RANGER CREW SP 570 NORTHSTAR EDITION GHOST GRAY SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER CREW SP 570 NorthStar Edition Ghost Gray UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 567cc |
| Drive System Type | On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Single Cylinder DOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 44 HP |
| Torque | 35.4 LB-FT |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 33.3 x 48.7 x 12.3 in |
| Box Capacity | 500 lb (226.8 kg) |
| Estimated Dry Weight | 1,900 lbs. (861 kg) |
| Fuel Capacity | 9.5 gal (35.9 L) |
| Ground Clearance | 10.3 in (26.1 cm) |
| GVW | 2,700 lbs |
| Hitch Towing Rating | 1,500 lb (680 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |
| Marketing Water Fording Height | Equal to the Floorboards |

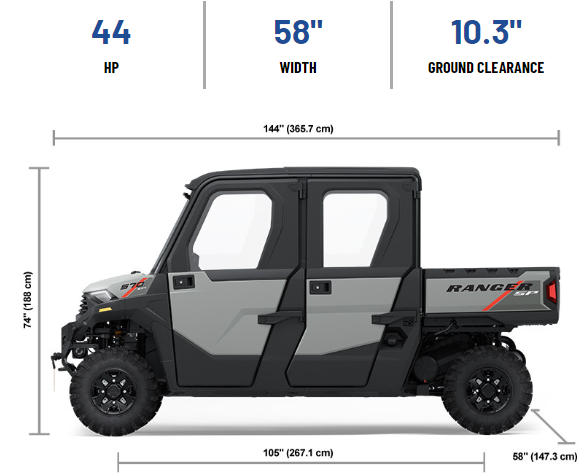

| Overall Vehicle Size (L x W x H) | 144 x 58 x 74 in. |
| Payload Capacity | 750 lbs. (340 kg) |
| Person Capacity | 4 |
| Wheelbase | 105 in (2,667 mm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Not Equipped |
| Cargo System | Lock & Ride® |
| Color / Graphics | Ghost Gray |
| Electronic Power Steering | Standard |
| Gauge | B1 |
| Instrumentation | 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet |
| Lighting | 2k Lumens High Beam, 1k Lumens Low Beam LED Headlights LED Taillamps |
| Other Standard Features | Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 575 CCA Battery, 660W Charging System (Stator), 48.4 Gal. Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Full Coverage Steel Front Bumper with Integrated Winch and Plow Mounts, Full Coverage Skid Plate, Premium Body Panels, Premium Cut & Sew Seats, Polaris Pulse Electrical System (3 position), Polaris HD 3,500 Lb. Synthetic Rope Winch with Autostop and In-Dash Switch, Premium Pro-Shield Cab, Doors with Crank Windows, Integrated Door Storage, Fixed Glass Windshield with Wiper and Washer Fluid, Rear Glass Panel, Factory Installed Heat with Defrost, Upper and Lower Dash Vents and Variable Fan Speed, USB Charging Port, Front Stabilizer Bar, Rear Wheel Liners,, NorthStar Badging |
| RIDE COMMAND+ | Available |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 25 x 8-12; Pro Armor X Terrain |
| Rear Tires | 25 x 10-12; Pro Armor X Terrain |
| Tire Ply Rating | 6 Ply Rated |
| Wheels | 12" Black Aluminum |
| SUSPENSION | |
| Front Suspension | MacPherson Strut 9 in (22.9 cm) Travel |
| Rear Suspension | Dual A-Arm 10.0 in (25.4 cm) Travel |
| Turning Radius | 196 in. (498 cm) |
