RANGER CREW SP 570 SAGEBRUSH GREEN SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER CREW SP 570 Sagebrush Green UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 567cc |
| Drive System Type | On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Single Cylinder DOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 44 HP |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 33.3 x 48.7 x 12.3 in |
| Box Capacity | 500 lb (226.8 kg) |
| Estimated Dry Weight | 1,411 lbs. (640 kg) |
| Fuel Capacity | 9.5 gal (35.9 L) |
| Ground Clearance | 11 in (27.9 cm) |
| GVW | 2,700 lbs |
| Hitch Towing Rating | 1,500 lb (680 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |

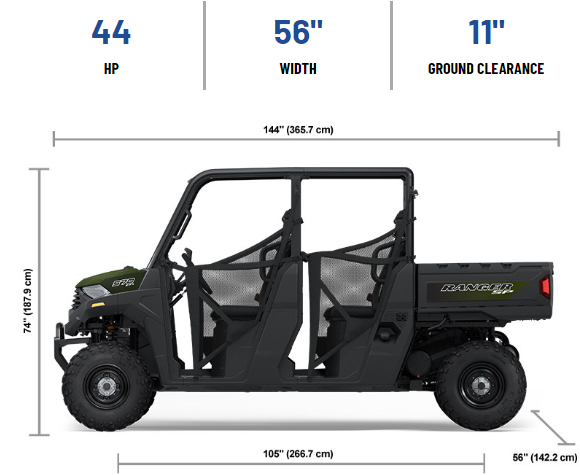

| Overall Vehicle Size (L x W x H) | 144 x 56 x 74 in. (365.8 x 142.2 x 188 cm) |
| Payload Capacity | 1,225 lbs. (510 kg) |
| Person Capacity | 4 |
| Wheelbase | 105 in (266.7 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Not Equipped |
| Cargo System | Lock & Ride® |
| Color / Graphics | Sagebrush Green |
| Electronic Power Steering | Not Equipped |
| Gauge | B1 |
| Instrumentation | 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet |
| Lighting | 55W Headlight, LED Taillamps |
| Other Standard Features | Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 340 CCA Battery, 660W Charging System (Stator), 48.4 Gal Onboard Storage With Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Steel Front Bumper With Winch Mount and Bull Bar, Front Stabilizer Bar, Rear Wheel Liners |
| RIDE COMMAND+ | Available |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 25 x 8-12; Carlisle 489 |
| Rear Tires | 25 x 10-12; Carlisle 489 |
| Tire Ply Rating | 4 Ply Rated |
| Wheels | Stamped Steel |
| SUSPENSION | |
| Front Suspension | MacPherson Strut 9 in (22.9 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS 10 in. (25.4 cm) Travel |
| Turning Radius | 16.3 ft (497.8 cm) |
