RANGER CREW XP 1000 TEXAS EDITION BRONZE METALLIC SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER CREW XP 1000 Texas Edition Bronze Metallic UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Twin Cylinder DOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 82 HP |
| Torque | 62 LB-FT |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm) |
| Box Capacity | 1,000 lbs (453.6 kg) |
| Dry Weight | 1,953 lbs. (886 kg) |
| Fuel Capacity | 11.5 gal (43.5 L) |
| Ground Clearance | 14 in (35.6 cm) |
| GVW | 3,750 lb |
| Hitch Towing Rating | 2,500 lb (1,134 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |
| Marketing Water Fording Height | Equal to the Floorboards |

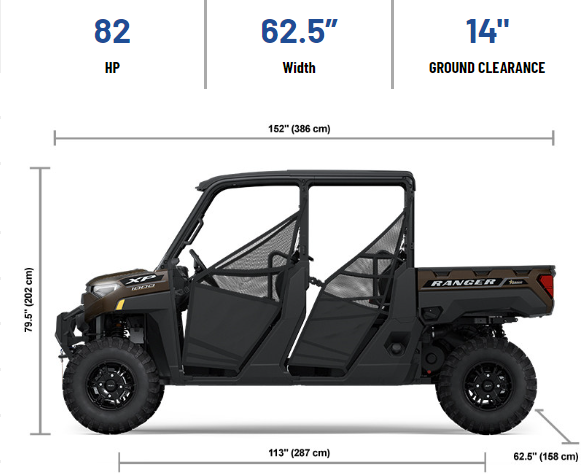

| Overall Vehicle Size (L x W x H) | 152 x 62.5 x 79.5 in. (386 x 158 x 202 cm) |
| Payload Capacity | 1,600 lb (725 kg) |
| Person Capacity | 6 |
| Wheelbase | 113 in (287 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Standard |
| Cargo System | Lock & Ride® |
| Color / Graphics | Bronze Metallic |
| Electronic Power Steering | Standard |
| Gauge | C4 |
| Instrumentation | Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 2 DC Outlets, 1 USB Charge Port |
| Lighting | Dual LED Headlamps, 1250lm low beam, 2300lm high beam, Dual LED Taillamps |
| Other Standard Features | Sport Roof, Polaris HD 4,500 Lb. Synthetic Rope Winch with Autostop and Wireless Remote, Arched A-Arms, Premium Cut & Sew Seats with Contoured Seatbacks, Standard "Polaris" Branding, Premium Steering Wheel and Interior Accents, Premium Texas Edition Badging, Polaris Pulse Electrical System (6 position), Standard In-Dash SAE Charge Port, NFC Front Badge |
| RIDE COMMAND+ | Available |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 29 x 9-14; PRO ARMOR X-TERRAIN |
| Rear Tires | 29 x 11-14; PRO ARMOR X-TERRAIN |
| Tire Ply Rating | 8 Ply Rated |
| Wheels | 14 in. (35.6 cm) Aluminum |
| SUSPENSION | |
| Front Suspension | Independent, Arched Lower A-Arms, 10 in (25.4 cm) of Travel |
| Rear Suspension | Independent, Arched Lower A-arms, 10" (25.4 cm) of Travel |
| Turning Radius | 204 in. |
