RANGER SP 570 PREMIUM POLARIS PURSUIT CAMO SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER SP 570 Premium Polaris Pursuit Camo UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 567cc |
| Drive System Type | On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Single Cylinder DOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 44 HP |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 33.3 x 48.7 x 12.3 in |
| Box Capacity | 500 lb (226.8 kg) |
| Estimated Dry Weight | 1,245 lbs. (565 kg) |
| Fuel Capacity | 9.5 gal (35.9 L) |
| Ground Clearance | 11 in (27.9 cm) |
| GVW | 2,255 lbs. |
| Hitch Towing Rating | 1,500 lb (680 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |

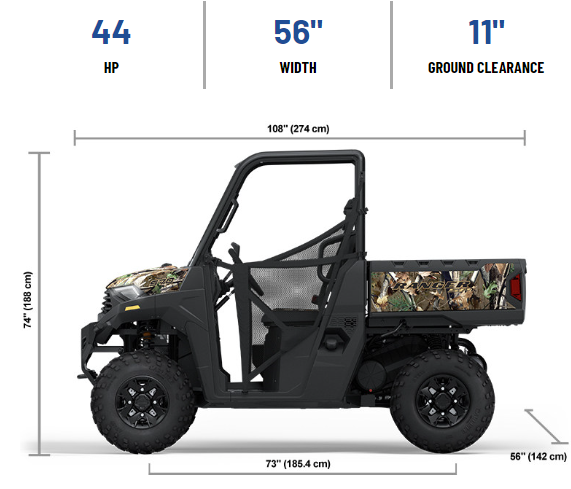

| Overall Vehicle Size (L x W x H) | 108 x 56 x 74 in. (274.3 x 142.2 x 188 cm) |
| Payload Capacity | 925 lbs. (420 kg) |
| Person Capacity | 2 |
| Wheelbase | 73 in (185.4 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Not Equipped |
| Cargo System | Lock & Ride® |
| Color / Graphics | Polaris Pursuit Camo |
| Electronic Power Steering | Standard |
| Gauge | B1 |
| Instrumentation | 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet |
| Lighting | High/Low Beam LED Headlights LED Taillamps |
| Other Standard Features | Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 575 CCA Battery, 660W Charging System (Stator), 20.25 Gal Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Full Coverage Steel Front Bumper with Integrated Winch and Plow Mounts, Full Coverage Skid Plate, Premium Body Panels, Premium Cut & Sew Seats, Polaris Pulse Electrical System (3 position), USB Charging Port, Rear Wheel Liners |
| RIDE COMMAND+ | Available |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 25 x 8-12; Carlisle 489 |
| Rear Tires | 25 x 10-12; Carlisle 489 |
| Tire Ply Rating | 4 Ply Rated |
| Wheels | 12" Black Aluminum |
| SUSPENSION | |
| Front Suspension | MacPherson Strut 9 in (22.9 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS 10 in. (25.4 cm) Travel |
| Turning Radius | 12.6 ft (386 cm) |
