RANGER XD 1500 NORTHSTAR EDITION PREMIUM TURBO SILVER SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER XD 1500 NorthStar Edition Premium Turbo Silver UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 1,498cc |
| Drive System Type | On-Demand True AWD/2WD/Turf/ Ultra Turf, Drive Modes: Comfort, Standard, Sport, Tow/Haul, Equipped with creep in drive and reverse to help with low speed drivability for smoother power delivery |
| Engine Braking System (EBS) | Drive Mode Specific Engine Braking System. Hill Assist enables the vehicle to hold its position, allowing easier maneuvering and improved control when stopping and starting on hills. |
| Engine Type | 4-Stroke DOHC Triple Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 110 HP |
| Torque | 105 LB-FT |
| Transmission/Final Drive | STEELDRIVE Automatic Transmission: D/R/P |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 43.4 x 56 x 13.4 in (110.2 x 142.2 x 34 cm) Equipped with Power Box Lift |
| Estimated Dry Weight | 2,800 lbs. (1,270 kg) |
| Front/Rear Rack | N.A/1,500 lbs. (680 kg) |
| Fuel Capacity | 13.6 gal (51.5 L) |
| Ground Clearance | 15 in. (38 cm) |
| GVW | 4,600 lbs. (2,087 kg) |
| Hitch Towing Rating | 3,500 lbs. (1,588 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |
| Marketing Water Fording Height | Equal to the Floorboards |

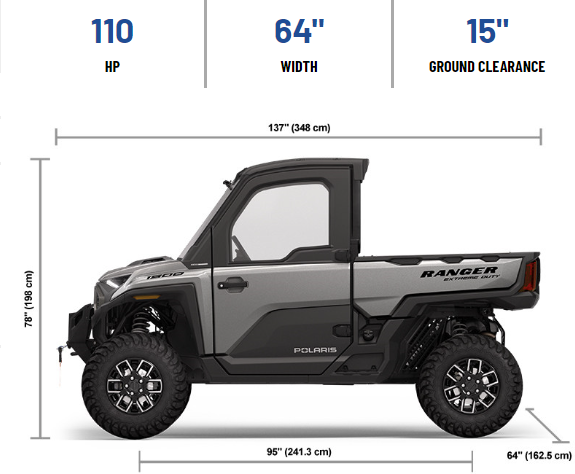

| Overall Vehicle Size (L x W x H) | 137 x 64 x 78 in (348 x 163 x 198 cm) |
| Payload Capacity | 1,705 lbs. (773 kg) |
| Person Capacity | 3 |
| Wheelbase | 95 in. (241.3 cm) |
| BRAKES | |
| Front/Rear Brakes | Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Standard |
| Cargo System | Lock & Ride MAX |
| Color / Graphics | Turbo Silver |
| Electronic Power Steering | High Output EPS |
| Gauge | C4 |
| Instrumentation | Driver Forward Information Center w/ 4 in Color Display + Analog Speedometer & Tachometers: User Selectable Blue/Red Backlighting & Brightness,Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Oil Pressure, Transmission Indicator, EPS Indicator, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, Speed Limiting |
| Lighting | LED Headlights w/ LED Taillights, LED Rear Work Light, LED Dome Light, Door Puddle Lighting, Interior Accent Lighting, Lighting Modes: Low, High, Accent, Blackout. Blackout mode switches off the headlights and dims interior lighting |
| Other Standard Features | Premium Pro-Shield Cab, Doors with Full Power Windows, Fixed Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Door Puddle Lighting, Interior Accent Lighting, Rearview Mirror, Heat, AC, Defrost. Premium Contoured Seats with Additional Bolstering, Premium Headrests and Center Armrest. Premium, Telescoping Steering Wheel and Painted Interior Accents. Polaris Pulse Electrical System (6 position), Overhead Switch Panel, Roof Pulse Bar (x position), 140 Amp Charging System, Front Bumper, DC Outlet, USB Charge Port, Trickle Charger, 12V Located in the Cargo Box with In-Dash On/Off Switch, NFC Front Badge, NorthStar Badge. Polaris HD 6,500 Lb. Synthetic Rope Winch with Autostop and Wireless Remote. |
| RIDE COMMAND+ | Available |
| Tilt Steering | Tilt & Telescoping |
| TIRES / WHEELS | |
| Front Tires | 30 x 10-15; KENDA® CROSS TRAIL |
| Rear Tires | 30 x 11-15; KENDA® CROSS TRAIL |
| Tire Ply Rating | 8 Ply Rated |
| Wheels | 15" Aluminum |
| SUSPENSION | |
| Front Suspension | Dual A-Arm 12" (30.5 cm) Travel |
| Rear Suspension | Dual Arched A-Arm IRS 12" (30.5 cm) Travel |
| Turning Radius | 15.1 ft. (4.6 m) |
