Specs: RANGER XD 1500 NORTHSTAR EDITION ULTIMATE TURBO SILVER

RANGER XD 1500 NORTHSTAR EDITION ULTIMATE TURBO SILVER SPECIFICATIONS

Find specifications below for the 2024 Polaris RANGER XD 1500 NorthStar Edition Ultimate Turbo Silver UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

ENGINE & DRIVETRAIN
Cooling	Liquid
Cylinders Displacement	1,498cc
Drive System Type	On-Demand True AWD/2WD/Turf/ Ultra Turf, Drive Modes: Comfort, Standard, Sport, Tow/Haul, Equipped with creep in drive and reverse to help with low speed drivability for smoother power delivery
Engine Braking System (EBS)	Drive Mode Specific Engine Braking System. Hill Assist enables the vehicle to hold its position, allowing easier maneuvering and improved control when stopping and starting on hills.
Engine Type	4-Stroke DOHC Triple Cylinder
Fuel System/Battery	Electronic Fuel Injection
Horsepower	110 HP
Torque	105 LB-FT
Transmission/Final Drive	STEELDRIVE Automatic Transmission: D/R/P
DIMENSIONS
Bed Box Dimensions (L x W x H)	43.4 x 56 x 13.4 in (110.2 x 142.2 x 34 cm) Equipped with Power Box Lift
Estimated Dry Weight	2,800 lbs. (1,270 kg)
Front/Rear Rack	N.A/1,500 lbs. (680 kg)
Fuel Capacity	13.6 gal (51.5 L)
Ground Clearance	15 in. (38 cm)
GVW	4,600 lbs. (2,087 kg)
Hitch Towing Rating	3,500 lbs. (1,588 kg)
Hitch Type	Standard 2 in (5 cm) Receiver
Marketing Water Fording Height	Equal to the Floorboards

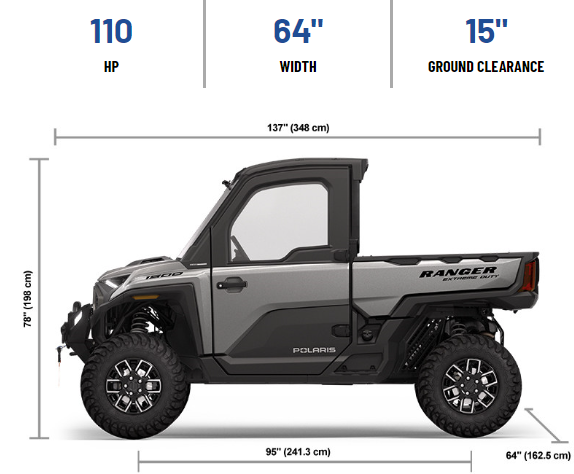

Overall Vehicle Size (L x W x H)	137 x 64 x 78 in (348 x 163 x 198 cm)
Payload Capacity	1,705 lbs. (773 kg)
Person Capacity	3
Wheelbase	95 in. (241.3 cm)
BRAKES
Front/Rear Brakes	Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers
Parking Brake	Park In-Transmission
ADDITIONAL SPECIFICATIONS
Adjustable Driver Seat	Standard
Cargo System	Lock & Ride MAX
Color / Graphics	Turbo Silver
Electronic Power Steering	High Output EPS
Gauge	C4
Instrumentation	Driver Forward Information Center w/ 4 in Color Display + Analog Speedometer & Tachometers: User Selectable Blue/Red Backlighting & Brightness, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Oil Pressure, Transmission Indicator, EPS Indicator, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, Speed Limiting 7" Glove Touch Display with JBL Audio. Featuring Plow Mode, Group Ride, GPS Navigation, Bluetooth, AM/FM Radio, Equipped with Connectivity through Ride Command+
Lighting	LED Headlights w/ LED Taillights, LED Rear Work Light, LED Dome Light, Door Puddle Lighting, Front LED Aux Light, Interior Accent Lighting, Lighting Modes: Low, High, Accent, Blackout. Blackout mode switches off the headlights and dims interior lighting
Other Standard Features	Premium Pro-Shield Cab, Doors with Full Power Windows, Tipout Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Door Puddle Lighting, Interior Accent Lighting, Rearview Mirror, Heat, AC, Defrost. Premium Heated Front Contoured Seats with Additional Bolstering, Premium Headrests and Center Armrest. Premium, Telescoping Steering Wheel and Painted Interior Accents. Polaris Pulse Electrical System (6 position), 140 Amp Charging System. Front Bumper with D-Rings, Top Bar and Integrated LED Auxillary Lights. Overhead Switch Panel, DC Outlet, USB Charge Port, Trickle Charger, 12V Located in the Cargo Box with In-Dash On/Off Switch, NFC Front Badge, NorthStar Badge. PRO HD 6,000 lb. Winch with Autostop and Wireless Remote.
Tilt Steering	Tilt & Telescoping Steering
TIRES / WHEELS
Front Tires	30 x 10-15; KENDA® CROSS TRAIL
Rear Tires	30 x 11-15; KENDA® CROSS TRAIL
Tire Ply Rating	8 Ply Rated
Wheels	15" Aluminum
SUSPENSION
Front Suspension	Dual A-Arm 12" (30.5 cm) Travel
Rear Suspension	Dual Arched A-Arm IRS 12" (30.5 cm) Travel
Turning Radius	15.1 ft. (4.6 m)
