RANGER XP 1000 NORTHSTAR EDITION TRAIL BOSS GHOST WHITE METALLIC WITH PERFORMANCE RED ACCENTS SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER XP 1000 NorthStar Edition Trail Boss Ghost White Metallic with Performance Red Accents UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Engine Braking System (EBS) and Active Descent Control (ADC) |
| Engine Type | 4-Stroke Twin Cylinder DOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 82 HP |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm) |
| Estimated Dry Weight | 1,000 lbs (453.6 kg); California 600 lb (272.2 kg) |
| Front/Rear Rack | 1,966 lb (891.7 kg) |
| Fuel Capacity | 11.5 gal (43.5 L) |
| Ground Clearance | 14 in (35.6 cm) |
| GVW | 3,600 lb (1,632.9 kg) |
| Hitch Towing Rating | 2,500 lb (1,134 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |

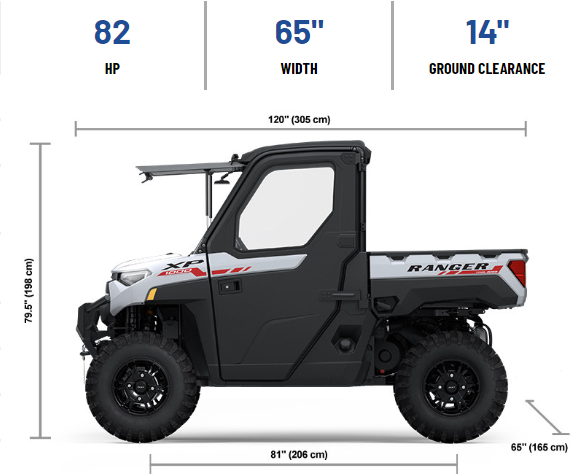

| Overall Vehicle Size (L x W x H) | 120 x 65 x 79.5 in. (305 x 165 x 202 cm) |
| Payload Capacity | 1,275 lbs (578.3 kg); California 1,100 lb (498.9 kg) |
| Person Capacity | 3 |
| Wheelbase | 81 in (206 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Standard |
| Cargo System | Lock & Ride® |
| Color / Graphics | Ghost White Metallic with Performance Red Accents |
| Electronic Power Steering | Standard |
| Instrumentation | Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 1 DC Outlet, 1 USB Charge Port |
| Lighting | Dual LED Headlamps, 1250lm Low Beam, 2300lm High Beam, Dual LED Taillamps |
| Other Standard Features | Polaris HD 4,500 Lb. Synthetic Rope Winch with Autostop and Wireless Remote, Arched A-Arms, Nivomat Self-Leveling Suspension, Polaris Engine Braking System with Active Descent Control, Premium Pro- Shield Cab, Doors with Power Windows, Tip- Out Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Rearview Mirror, Heat, AC, Defrost, Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System with 6- Position Underhood Busbar and 6-Position Roof Busbar, Standard In-Dash SAE Charge Port, In Dash Speakers, Front & Rear Cameras, 7" Glove Touch Display: Plow Mode, Group Ride, GPS Navigation, Bluetooth, AM/FM Radio ,Switched 15amp 12V Auxiliary Power outlet in Box, Switched Rear Facing LED Cargo/Work light, Added Accy Switch Panel (4 switch locations), Equipped with Connected, NFC Front Badge, NorthStar Badge, *Connectivity with Ride Command+. *Not available in International locations |
| RIDE COMMAND+ | Factory-Installed |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 29 x 9-14; PRO ARMOR X-TERRAIN |
| Rear Tires | 29 x 11-14; PRO ARMOR X-TERRAIN |
| Tire Ply Rating | 8 Ply Rated |
| Wheels | 14 in. (35.6 cm) Aluminum |
| SUSPENSION | |
| Front Suspension | Independent, Arched Lower A-Arms, 10 in (25.4 cm) of Travel |
| Rear Suspension | Independent, Arched Lower A-arms, Nivomat Load-Adaptive, 10" (25.4 cm) of Travel |
| Turning Radius | 13.3 ft (406.4 cm) |
