RANGER XP 1000 PREMIUM DESERT SAND SPECIFICATIONS
Find specifications below for the 2024 Polaris RANGER XP 1000 Premium Desert Sand UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Twin Cylinder SOHC |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 82 HP |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm) |
| Box Capacity | 1,000 lbs (453.6 kg); California 600 lb (272.2 kg) |
| Dry Weight | 1,625 lb (737 kg) |
| Fuel Capacity | 11.5 gal (43.5 L) |
| Ground Clearance | 13 in (33 cm) |
| GVW | 3,600 lb (1,632.9 kg) |
| Hitch Towing Rating | 2,500 lb (1,134 kg) |
| Hitch Type | Standard 2 in (5 cm) Receiver |

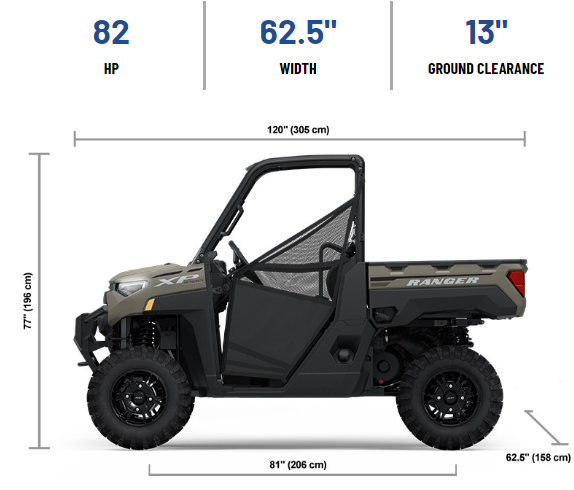

| Overall Vehicle Size (L x W x H) | 120 x 62.5 x 77 in (305 x 158 x 196 cm) |
| Payload Capacity | 1,500 lb. (680.4 kg); California 1,100 lb. (498.9 kg) |
| Person Capacity | 3 |
| Wheelbase | 81 in (206 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Adjustable Driver Seat | Standard |
| Cargo System | Lock & Ride® |
| Color / Graphics | Desert Sand |
| Electronic Power Steering | Standard |
| Instrumentation | Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 1 DC Outlet, 1 USB Charge Port |
| Lighting | Dual LED Headlamps, 1250 lm Low Beam, 2300 lm High Beam, Dual LED Taillamps |
| Other Standard Features | Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), Standard In-Dash SAE Charge Port, NFC Front Badge |
| RIDE COMMAND+ | Available |
| Tilt Steering | Standard |
| TIRES / WHEELS | |
| Front Tires | 27 x 9-14; Pro Armor X-Terrain |
| Rear Tires | 27 x 11-14; Pro Armor X-Terrain |
| Tire Ply Rating | 8 Ply Rated |
| Wheels | 14" Aluminum |
| SUSPENSION | |
| Front Suspension | Dual A-Arm 11 in (27.9 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS 11 in (27.9 cm) Travel |
| Turning Radius | 13.3 ft (406.4 cm) |
