ENGINE & DRIVETRAIN | |
Cooling | Liquid |
Cylinders Displacement | 999cc |
Drive System Type | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
Engine Braking System (EBS) | Not Equipped |
Engine Type | 4-Stroke Twin Cylinder SOHC |
Fuel System/Battery | Electronic Fuel Injection |
Horsepower | 82 HP |
Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft |
DIMENSIONS | |
Bed Box Dimensions (L x W x H) | 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm) |
Box Capacity | 1,000 lbs (454 kg) |
Dry Weight | 1,625 lb (737 kg) |
Fuel Capacity | 11.5 gal (43.5 L) |
Ground Clearance | 13 in (33 cm) |
GVW | 3,600 lb (1,632.9 kg) |
Hitch Towing Rating | 2,500 lb (1,134 kg) |
Hitch Type | Standard 2 in (5 cm) Receiver |

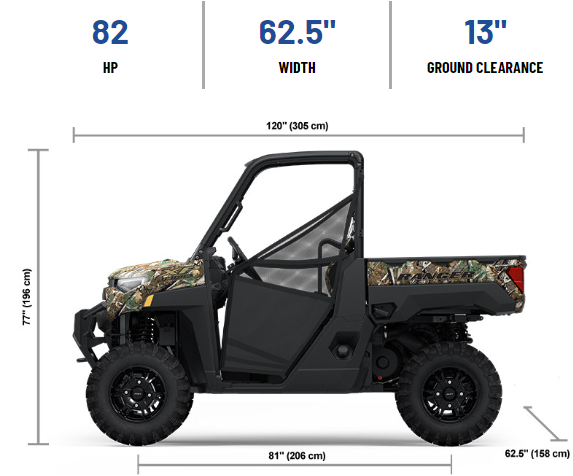

Overall Vehicle Size (L x W x H) | 120 x 62.5 x 77 in (305 x 158 x 196 cm) |
Payload Capacity | 1,500 lb. (680.4 kg) |
Person Capacity | 3 |
Wheelbase | 81 in (206 cm) |
BRAKES | |
Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
Parking Brake | Park In-Transmission |
ADDITIONAL SPECIFICATIONS | |
Adjustable Driver Seat | Standard |
Cargo System | Lock & Ride® |
Color / Graphics | Polaris Pursuit Camo |
Electronic Power Steering | Standard |
Instrumentation | Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 1 DC Outlet, 1 USB Charge Port |
Lighting | Dual LED Headlamps, 1250 lm Low Beam, 2300 lm High Beam, Dual LED Taillamps |
Other Standard Features | Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), Standard In-Dash SAE Charge Port, NFC Front Badge |
RIDE COMMAND+ | Available |
Tilt Steering | Standard |
TIRES / WHEELS | |
Front Tires | 27 x 9-14; Pro Armor X-Terrain |
Rear Tires | 27 x 11-14; Pro Armor X-Terrain |
Tire Ply Rating | 8 Ply Rated |
Wheels | 14" Aluminum |
SUSPENSION | |
Front Suspension | Dual A-Arm 11 in (27.9 cm) Travel |
Rear Suspension | Dual A-Arm, IRS 11 in (27.9 cm) Travel |
Turning Radius | 13.3 ft (406.4 cm) |
