Specs: RZR PRO R 4 PREMIUM MATTE HEAVY METAL

RZR PRO R 4 PREMIUM MATTE HEAVY METAL SPECIFICATIONS

Find specifications below for the 2024 Polaris RZR Pro R 4 Premium Matte Heavy Metal Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.

ENGINE & DRIVETRAIN
Cooling	Liquid
Cylinders Displacement	1,997cc
Drive System Type	Pro Performance True 2WD/4WD/4WD Lock
Engine Braking System (EBS)	Not Equipped
Engine Type	4-Stroke DOHC Inline Four Cylinder
Fuel System/Battery	Electronic Fuel Injection
Horsepower	225 HP
Transmission/Final Drive	Automatic PVT P/R/N/L/H
DIMENSIONS
Bed Box Dimensions (L x W x H)	29.5 x 23.8 x 8.1 in (75 x 60.5 x 20.6 cm)
Box Capacity	300 lb (136.1 kg)
Estimated Dry Weight	2,437 lb (1105.4 kg)
Fuel Capacity	12.30 gal (46.56 L)
Ground Clearance	16 in (40.6 cm)
Hitch Towing Rating	N/A

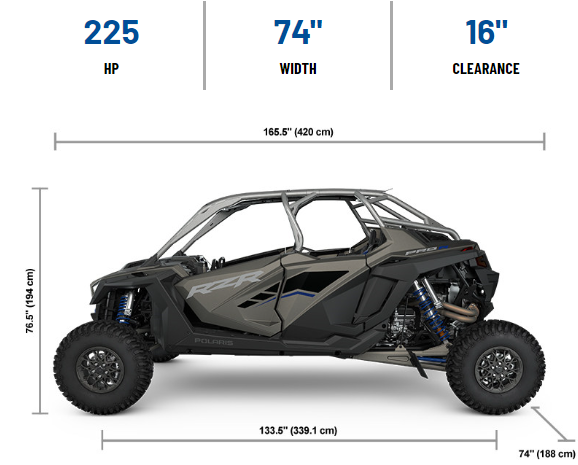

Overall Vehicle Size (L x W x H)	165.5 x 74 x 76.5 in (420 x 188 x 194 cm)
Payload Capacity	900 lb (408 kg)
Wheelbase	133.5 in (339.1cm)
BRAKES
Front/Rear Brakes	4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor
Parking Brake	Park In-Transmission
ADDITIONAL SPECIFICATIONS
Cargo System	Lock & Ride®; Convertible Fold Flat Rear Seat Storage with Integrated Tie Down Points, 27.7 x 52.8 x 19.5 in (70.4 x 134.1 x 49.53 cm) Factory Equipped Cargo Liner
Doors	Front & Rear Full Doors
Electronic Power Steering	Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel with Tilt & Telescoping Adjustment; RIDE COMMAND Push Button Controls
Hitch Type	Not Equipped
Instrumentation	7” Glove-Touch Display: Built-In GPS, Mapping, Vehicle-to-Vehicle with *Group Ride, Follow the Leader, & Messaging. Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In- Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate® Premium Audio (Including 2 Tweeters, 2 Front Speakers, and External 400W Amp) Dual-Sweep Analog Dials with 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator
Lighting	Signature White LED, Low/High & Red LED Tail/Brake Lights; Front, Rear, and Interior Accent Lighting
Other Standard Features	RIDE COMMAND, High Output External 1700W Alternator, Polaris Pulse System, In-Dash Charge Port, 2 Front DC Accy Ports, Polaris P.A.S.S., Painted Aluminum Roof, Colored Toe Link, Hood Scoop, Mud and Rock Guards, User Selectable Throttle Modes (Sport, Rock, & Race), Front Bumper
RIDE COMMAND+	Available
Seat Type	Color-Matched, Front Bolstered Bucket Seats with 4-Way Adjustability (Including 6 in front to Back Toolless Seat Sliders with Tilt Adjustability) and Retractable Click-6 Harnesses, Rear Stadium Style Seating with Non-Retractable 6-Point Harnesses
TIRES / WHEELS
Front Tires	32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7
Rear Tires	32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7
Wheels	Painted Cast Aluminum Rim with 5-Lug Pattern
SUSPENSION
Electronic Suspension Control System	N/A
Front Shocks	2.5 in Walker Evans Velocity Needle Shock with 16-Position Adjustable Clickers
Front Suspension	Light Weight Boxed Dual A-Arm with 3 piece Stabilizer Bar and 27.0 in (68.6 cm) *Usable Travel, 22.25 in (56.5 cm) Wheel Travel, Unitized Hubs
Rear Shocks	3.0 in Walker Evans Velocity Needle Shock with 16-Position Adjustable Clickers
Rear Suspension	Boxed Trailing Arm with Toe Link, High- Clearance Radius Rods, and 3 Piece Stabilizer Bar and 29.0 in (73.7 cm) *Usable Travel, 24.5 in (62.2 cm) Wheel Travel, Unitized Hubs

*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
