RZR PRO R 4 ULTIMATE MATTE HEAVY METAL SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR Pro R 4 Ultimate Matte Heavy Metal Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 1,997cc |
| Drive System Type | Pro Performance True 2WD/4WD/4WD Lock |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Inline Four Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 225 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 29.5 x 23.8 x 8.1 in (75 x 60.5 x 20.6 cm) |
| Box Capacity | 300 lb (136.1 kg) |
| Estimated Dry Weight | 2,480 lb (1124.9 kg) |
| Fuel Capacity | 12.30 gal (46.56 L) |
| Ground Clearance | 16 in (40.6 cm) |
| Hitch Towing Rating | N/A |

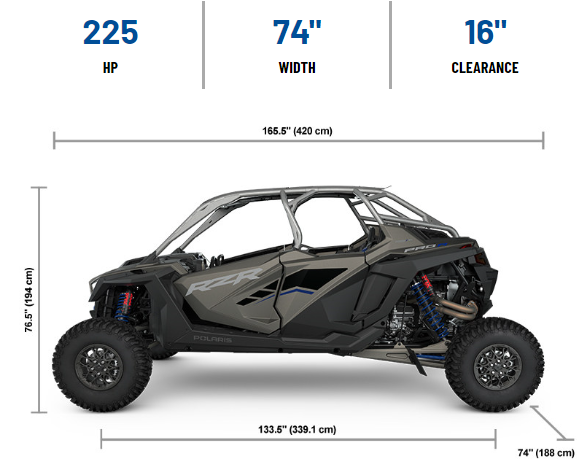

| Overall Vehicle Size (L x W x H) | 165.5 x 74 x 76.5 in (420 x 188 x 194 cm) |
| Payload Capacity | 900 lb (408 kg) |
| Wheelbase | 133.5 in (339.1cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride®; Convertible Fold Flat Rear Seat Storage with Integrated Tie Down Points, 27.7 x 52.8 x 19.5 in (70.4 x 134.1 x 49.53 cm) Factory Equipped Cargo Liner |
| Doors | Front & Rear Full Doors |
| Electronic Power Steering | Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel withTilt and Telescoping Adjustment; DYNAMIX DV with Integrated EPS Modes and RIDE COMMAND Push Button Controls |
| Hitch Type | Not Equipped |
| Instrumentation | 7” Glove-Touch Display: Built-In GPS, Mapping, Vehicle-to-Vehicle with *Group Ride, Follow the Leader, & Messaging. Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In- Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate® Premium Audio (Including 2 Tweeters, 2 Front Speakers, 2 Rear Speakers, and External 400W Amp) Dual- Sweep Analog Dials with 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator |
| Lighting | Signature White LED, Low/High & Red LED Tail/Brake Lights; Front, Rear, and Interior Accent Lighting |
| Other Standard Features | High Output External 1700W Alternator, Polaris Pulse System, In-Dash Charge Port, 1 Front DC Accy Ports, 1 Rear DC Accy Port, Polaris P.A.S.S., Painted Aluminum Roof, Colored Toe Link, Hood Scoop, Mud and Rock Guards, User Selectable Throttle Modes (Sport, Rock, & Race), Front Bumper |
| RIDE COMMAND+ | Factory-Installed |
| Seat Type | Color-Matched, Front Bolstered Bucket Seats with 4-Way Adjustability (Including 6 in front to Back Toolless Seat Sliders with Tilt Adjustability) and Retractable Click-6 Harnesses, Rear Stadium Style Seating with Non-Retractable 6-Point Harnesses |
| TIRES / WHEELS | |
| Front Tires | 32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7 |
| Rear Tires | 32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7 |
| Wheels | Painted Cast Aluminum Rim with 5-Lug Pattern |
| SUSPENSION | |
| Electronic Suspension Control System | DYNAMIX DV with Selectable Ride Modes: Comfort, Rock, Track, Baja |
| Front Shocks | FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound) |
| Front Suspension | Light Weight Boxed Dual A-Arm with 3 piece Stabilizer Bar and 27.0 in (68.6 cm) *Usable Travel, 22.25 in (56.5 cm) Wheel Travel, Unitized Hubs |
| Rear Shocks | FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound) |
| Rear Suspension | Boxed Trailing Arm with Toe Link, High- Clearance Radius Rods, and 3 Piece Stabilizer Bar and 29.0 in (73.7 cm) *Usable Travel, 24.5 in (62.2 cm) Wheel Travel, Unitized Hubs |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
