RZR PRO XP SPORT GHOST GRAY SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR Pro XP Sport Ghost Gray Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 925cc |
| Drive System Type | Isolated Xtreme Performance True On- Demand AWD/2WD |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Twin Cylinder Turbocharged |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 181 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm) |
| Box Capacity | 300 lb (136 kg) |
| Estimated Dry Weight | 1,759 lb (798 kg) |
| Fuel Capacity | 12 gal (45.4 L) |
| Ground Clearance | 14.5 in (36.8 cm) |
| Hitch Towing Rating | N/A |

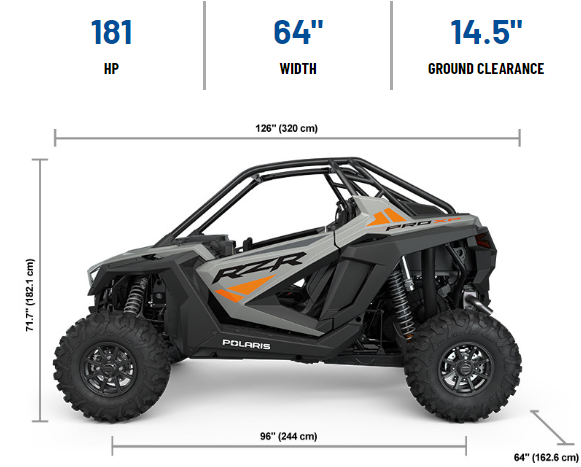

| Overall Vehicle Size (L x W x H) | 126 x 64 x 71.7 in (320 x 162.6 x 182.1 cm) |
| Payload Capacity | 740 lb (336 kg) |
| Wheelbase | 96 in (244 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® |
| Doors | Vented Full Doors |
| Electronic Power Steering | High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel |
| Hitch Type | Not Equipped |
| Instrumentation | Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet |
| Lighting | White LED, Low/High & Red LED Tail/Brake Lights |
| Other Standard Features | High Output 900W Charging System with Sealed Electrical, Polaris Pulse System, In- Dash Charge Port, Polaris P.A.S.S. |
| Seat Type | Bolstered Bucket Seats with 4-way adjustability and 3-Pt Height Adjustable Seat Belts |
| TIRES / WHEELS | |
| Front Tires | 30 x 10-14 MAXXIS Carnivore; Wheel Size 14x6 |
| Rear Tires | 30 x 10-14 MAXXIS Carnivore; Wheel Size 14x7 |
| Wheels | Cast Aluminum |
| SUSPENSION | |
| Electronic Suspension Control System | Not Equipped |
| Front Shocks | 2" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
| Front Suspension | High-Clearance Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) *Usable Travel, 17 in (43.2 cm) Wheel Travel |
| Rear Shocks | 2.5 in Walker Evans Needle Shocks with 16- Position Adjustable Clickers |
| Rear Suspension | Trailing Arm & Standard-Clearance Radius Rods with Stabilizer Bar and 22 in (55.9 cm) *Usable Travel, 20 in (50.8 cm) Wheel Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
