RZR PRO XP ULTIMATE SUPER GRAPHITE SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR Pro XP Ultimate Super Graphite Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 925cc |
| Drive System Type | Isolated Xtreme Performance True On- Demand AWD/2WD |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Twin Cylinder Turbocharged |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 181 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |

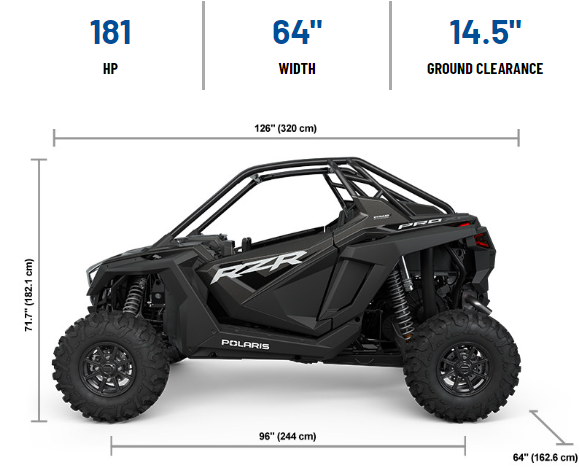

| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm) |
| Box Capacity | 300 lb (136 kg) |
| Estimated Dry Weight | 1,795 lb (814 kg) |
| Fuel Capacity | 12 gal (45.4 L) |
| Ground Clearance | 14.5 in (36.8 cm) |
| Hitch Towing Rating | N/A |
| Overall Vehicle Size (L x W x H) | 126.1 x 64 x 71.7 in (320 x 163 x 182 cm) |
| Payload Capacity | 740 lb (336 kg) |
| Wheelbase | 96 in (244 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® |
| Doors | Full Doors |
| Electronic Power Steering | High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel with Tilt and Telescoping Adjustment; DYNAMIX and RIDE COMMAND Push Button Controls |
| Hitch Type | Not Equipped |
| Instrumentation | 7” Glove-Touch Display: DYNAMIX 2.0 Visualizer, Built-In GPS, *Group Ride (Cell- Based or GPS Based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In- Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate® Premium Audio (Including 2 Front Speakers and an External 400W 4- Channel Amplifier) Dual-Sweep Analog Dials with 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet |
| Lighting | Signature White LED, Low/High & Red LED Tail/Brake Lights; Front & Rear LED Accent Lights; Interior Accent Lighting |
| Other Standard Features | RIDE COMMAND, High Output 900W Charging System with Sealed Electrical, Polaris Pulse System, USB Charging, Front Bumper, In-Dash Charge Port, Color Matched Seats, Polaris P.A.S.S., Rockford Fosgate® Stage 3 Audio |
| Seat Type | Bolstered Bucket Seats with 4-Way Adjustability (Including 6 in Front to Back Toolless Seat Slider with Tilt Adjustability) and Retractable Click-6 Harnesses |
| TIRES / WHEELS | |
| Front Tires | 30 x 10-14 Maxxis Carnivore; 8-Ply Rated; Wheel Size 14x6 |
| Rear Tires | 30 x 10-14 Maxxis Carnivore; 8-Ply Rated; Wheel Size 14x7 |
| Wheels | Cast Aluminum |
| SUSPENSION | |
| Electronic Suspension Control System | DYNAMIX 2.0 Active Suspension System |
| Front Shocks | FOX® 2.5 Podium Live Valve with Bottom- Out Control (Electronically Controlled Damping) |
| Front Suspension | High-Clearance Dual A-Arm with Stabilizer Bar and 20 in (50.8 cm) *Usable Travel, 17 in (43.2 cm) Wheel Travel |
| Rear Shocks | FOX® 2.5 Podium Live Valve with Bottom- Out Control (Electronically Controlled Damping) |
| Rear Suspension | Trailing Arm & Standard-Clearance Radius Rods with Stabilizer Bar and 22 in (55.9 cm) *Usable Travel, 20 in (50.8 cm) Wheel Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
