RZR TRAIL SPORT STORM BLUE SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR Trail Sport Storm Blue Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 875cc |
| Drive System Type | True On-Demand AWD/2WD |
| Engine Braking System (EBS) | Yes |
| Engine Type | 4-Stroke DOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 75 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 20.7 x 37 x 7.9 in (52.5 x 94 x 20 cm) |
| Box Capacity | 300 lb (136.1 kg) |
| Estimated Dry Weight | 1,238 lb (561.5 kg) |
| Fuel Capacity | 9.5 gal (35.9 L) |
| Ground Clearance | 11 in (27.9 cm) |
| Hitch Towing Rating | 1500 lb (680.4 kg) |

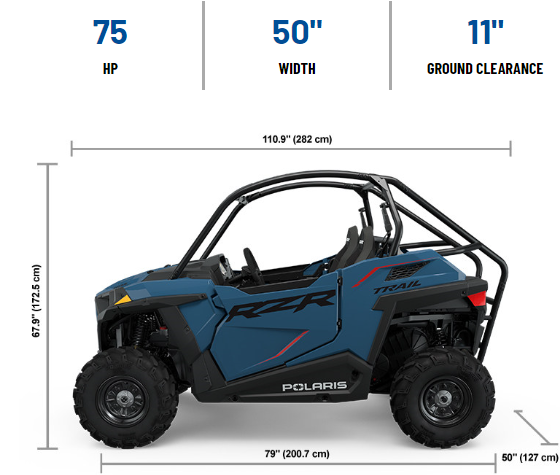

| Overall Vehicle Size (L x W x H) | 110.9 x 50 x 67.9 in (282 x 127 x 172.5 cm) |
| Payload Capacity | 740 lb (335.7 kg) |
| Wheelbase | 79 in (200.7 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® |
| Doors | Full Doors |
| Electronic Power Steering | Yes |
| Hitch Type | Standard 1.25 in (3.2 cm) Receiver |
| Instrumentation | Dual-Sweep Analog Dials with 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet + 12V Power Plug |
| Lighting | Front Blacked Out Signature White LED Low/High with Accent Lights & Red LED Tail/Brake Lights |
| Other Standard Features | Adjustable Tilt Steering, Near Field Communication Technology |
| Seat Type | Bolstered Bucket Seats with Toolless Driver Seat Slider and Standard Passenger Seat Slider (Tool Required for Adjustment on Passenger Seat) |
| TIRES / WHEELS | |
| Front Tires | 26 X 8 X 12; PXT |
| Rear Tires | 26 X 9 X 12; PXT |
| Wheels | Stamped Steel |
| SUSPENSION | |
| Electronic Suspension Control System | Not Equipped |
| Front Shocks | ZF Twin Tube |
| Front Suspension | Dual A-Arm with Stabilizer Bar and 10 in (25.4 cm) Wheel Travel |
| Rear Shocks | ZF Twin Tube |
| Rear Suspension | Dual A-Arm with Stabilizer Bar and 10 in (25.4 cm) Wheel Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
