RZR TURBO R 4 ULTIMATE MILITARY TAN SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR Turbo R 4 Ultimate Military Tan Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 925cc |
| Drive System Type | Isolated Xtreme Performance True On- Demand AWD/2WD |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Twin Cylinder Turbocharged |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 181 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 26 x 17.7 x 11.5 in (66 x 45 x 29.2 cm) |
| Box Capacity | 300 lb (136 kg) |
| Estimated Dry Weight | 2,286 lb (1037 kg) |
| Fuel Capacity | 13 gal (49.2 L) |
| Ground Clearance | 16 in (40.6 cm) |
| Hitch Towing Rating | N/A |

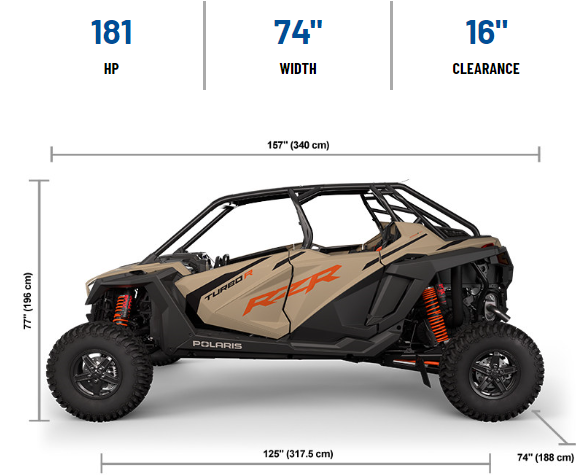

| Overall Vehicle Size (L x W x H) | 157 x 74 x 77 in (398.7 x 188 x 196 cm) |
| Payload Capacity | 1160 lb (526 kg) |
| Wheelbase | 125 in (317.5 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Triple-Bore Front and Dual-Bore Rear Calipers; Aluminum Top Hat Rotor |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® Fold Flat Rear Storage, convertible rear seat storage with integrated tie down points, 27.7 x 52.8 x 19.5 in (70.4 x 134.1 x 49.53 cm) |
| Doors | Front & Rear Full Doors |
| Electronic Power Steering | Rack Mounted High Assist Electronic Power Steering with Quick Turn Rack; Race Inspired Steering Wheel with Tilt and Telescoping Adjustment; DYNAMIX DV with Integrated EPS Modes and RIDE COMMAND Push Button Controls |
| Hitch Type | Not Equipped |
| Instrumentation | 7” Glove-Touch Display: Built-In GPS, Mapping, Vehicle-to-Vehicle with *Group Ride, Follow the Leader, & Messaging. Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In- Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate® Premium Audio (Including 2 Tweeters, 2 Front Speakers, 2 Rear Speakers, and External 400W Amp) Dual- Sweep Analog Dials with 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals. Digital Instrumentation: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator |
| Lighting | Signature White LED, Low/High & Red LED Tail/Brake Lights; Front, Rear, and Interior Accent Lighting |
| Other Standard Features | RIDE COMMAND, High Output 900W Charging System, Polaris Pulse System, In- Dash Charge Port, 2 Front DC Accy Ports, Polaris P.A.S.S., Painted Aluminum Roof, Colored Toe Link, Mud and Rock Guards, Color Matched Seats, Front Bumper |
| RIDE COMMAND+ | Available |
| Seat Type | Color-Matched, Front Bolstered Bucket Seats with 4-Way Adjustability (Including 6 in front to Back Toolless Seat Sliders with Tilt Adjustability) and Retractable Click-6 Harnesses, Rear Stadium Style Seating with Non-Retractable 6-Point Harnesses |
| TIRES / WHEELS | |
| Front Tires | 32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7 |
| Rear Tires | 32 x 10-15 Maxxis Rampage Fury; 8-Ply Rated; Wheel Size 15x7 |
| Wheels | Painted Cast Aluminum Rim with 5-Lug Pattern |
| SUSPENSION | |
| Electronic Suspension Control System | DYNAMIX DV with Selectable Ride Modes: Comfort, Rock, Track, Baja |
| Front Shocks | FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound) |
| Front Suspension | Light Weight Boxed Dual A-Arm with 3 Piece Stabilizer Bar and 27 in (68.6 cm) *Usable Travel, 22.25 in (56.5 cm) Wheel Travel, Unitized Hubs |
| Rear Shocks | FOX® 3.0 Live Valve X2 Internal Bypass (Electronically Controlled Compression and Rebound) |
| Rear Suspension | Tubular Trailing Arm with Boxed Gusseting and Toe Link, High Clearance Radius Rods, and Stabilizer Bar and 28.3 in (71.9 cm) *Usable Travel, 22.4 in (56.9 cm) Wheel Travel, Unitized Hubs |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
