RZR XP 1000 ULTIMATE INDY RED SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR XP 1000 Ultimate Indy Red Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance True On-Demand AWD/2WD |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 114 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm) |
| Box Capacity | 300 lb (136 kg) |
| Estimated Dry Weight | 1,642 lbs (744.8 kg) |
| Fuel Capacity | 9.5 gal (36 L) |
| Ground Clearance | 14.5 in (36.8 cm) |
| Hitch Towing Rating | N/A |

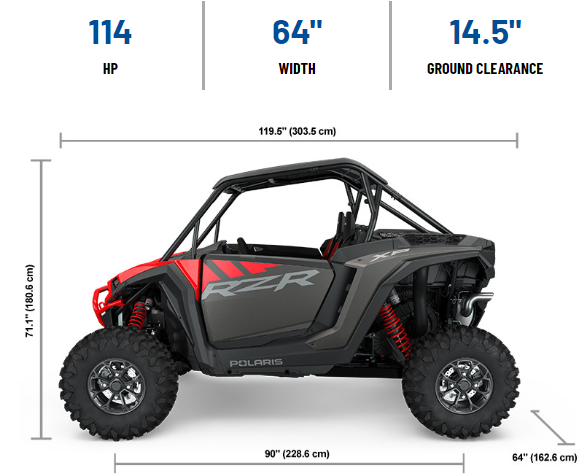

| Overall Vehicle Size (L x W x H) | 120 x 64 x 74 in (304.8 x 162.6 x 188 cm) |
| Payload Capacity | 740 lb (336 kg) |
| Wheelbase | 90 in ( 228.6 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Single Bore Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® |
| Doors | Full Doors |
| Electronic Power Steering | Standard with Quick Turn Rack |
| Hitch Type | Not Equipped |
| Instrumentation | RIDE COMMAND 7” Glove-Touch Display: Digital Instrumentation, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, Fault Code Display, DC Outlet, Ambient Temp, Rockford Fosgate® Stage 3 Audio (Including 2 Front & 2 Rear Co-axial Speakers and External 400W Amp) |
| Lighting | LED Head Lights & Tail Lights, Front & Rear LED Accent Lights, Illuminated In- Cab Controls |
| Other Standard Features | Color Matched Seats, Premium Paint & Graphics, Color-Matched Dash & Bumper, 900-W Charging System, 6-Position Pulse Bar, Tilt Steering, Poly Sport Roof, Rockford Fosgate® Stage 3 Audio, Ride Command, Rear Camera, Accent Lighting, Adjustable 4-Point Subzero Harnesses, Front Tow Loop, Front Bumper |
| Seat Type | Bolstered Bucket Seats with Driver Seat Slider and Adjustable 4-Point Subzero Harnesses |
| TIRES / WHEELS | |
| Front Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
| Rear Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
| Wheels | Cast Aluminum |
| SUSPENSION | |
| Electronic Suspension Control System | Not Equipped |
| Front Shocks | 2" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
| Front Suspension | Dual A-Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel |
| Rear Shocks | 2.5" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
| Rear Suspension | Trailing Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
