ENGINE & DRIVETRAIN | |
Cooling | Liquid |
Cylinders Displacement | 999cc |
Drive System Type | High Performance True On-Demand AWD/2WD |
Engine Braking System (EBS) | Not Equipped |
Engine Type | 4-Stroke DOHC Twin Cylinder |
Fuel System/Battery | Electronic Fuel Injection |
Horsepower | 114 HP |
Transmission/Final Drive | Automatic PVT P/R/N/L/H |
DIMENSIONS | |
Bed Box Dimensions (L x W x H) | 28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm) |
Box Capacity | 300 lb (136 kg) |
Estimated Dry Weight | 1,642 lbs (744.8 kg) |
Fuel Capacity | 9.5 gal (36 L) |
Ground Clearance | 14.5 in (36.8 cm) |
Hitch Towing Rating | N/A |

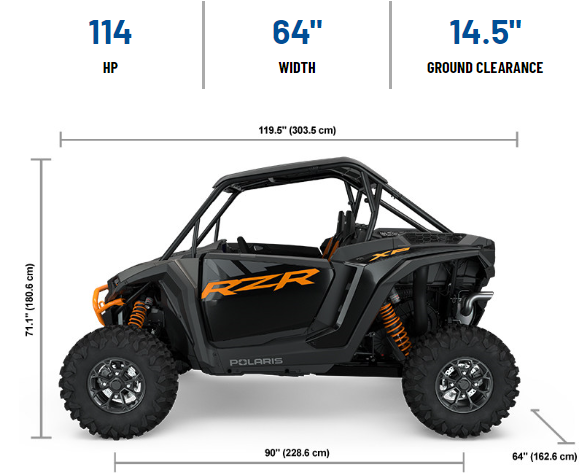

Overall Vehicle Size (L x W x H) | 120 x 64 x 74 in (304.8 x 162.6 x 188 cm) |
Payload Capacity | 740 lb (336 kg) |
Wheelbase | 90 in ( 228.6 cm) |
BRAKES | |
Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Single Bore Rear Calipers |
Parking Brake | Park In-Transmission |
ADDITIONAL SPECIFICATIONS | |
Cargo System | Lock & Ride® |
Doors | Full Doors |
Electronic Power Steering | Standard with Quick Turn Rack |
Hitch Type | Not Equipped |
Instrumentation | RIDE COMMAND 7” Glove-Touch Display: Digital Instrumentation, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In-Vehicle Communications Capable With Optional Sena Headsets Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, Fault Code Display, DC Outlet, Ambient Temp, Rockford Fosgate® Stage 3 Audio (Including 2 Front & 2 Rear Co-axial Speakers and External 400W Amp) |
Lighting | LED Head Lights & Tail Lights, Front & Rear LED Accent Lights, Illuminated In- Cab Controls |
Other Standard Features | Color Matched Seats, Premium Paint & Graphics, Color-Matched Dash & Bumper, 900-W Charging System, 6-Position Pulse Bar, Tilt Steering, Poly Sport Roof, Rockford Fosgate® Stage 3 Audio, Ride Command, Rear Camera, Accent Lighting, Adjustable 4-Point Subzero Harnesses, Front Tow Loop, Front Bumper |
Seat Type | Bolstered Bucket Seats with Driver Seat Slider and Adjustable 4-Point Subzero Harnesses |
TIRES / WHEELS | |
Front Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
Rear Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
Wheels | Cast Aluminum |
SUSPENSION | |
Electronic Suspension Control System | Not Equipped |
Front Shocks | 2" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
Front Suspension | Dual A-Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel |
Rear Shocks | 2.5" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
Rear Suspension | Trailing Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
