RZR XP 4 1000 PREMIUM MATTE TITANIUM / ONYX BLACK SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR XP 4 1000 Premium Matte Titanium / Onyx Black Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance True On-Demand AWD/2WD |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 114 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |

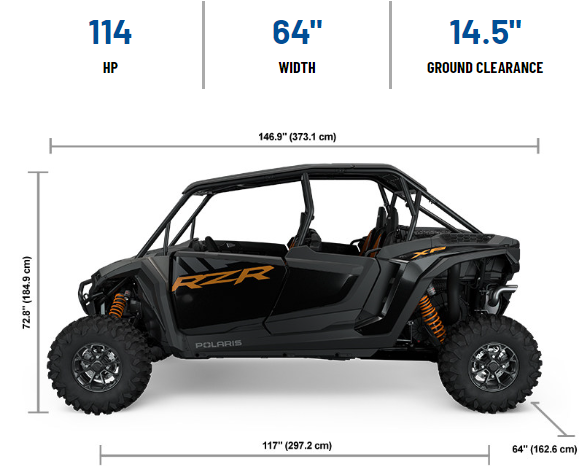

| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm) |
| Box Capacity | 300 lb (136 kg) |
| Estimated Dry Weight | 1,896 lbs (860 kg) |
| Fuel Capacity | 9.5 gal (36 L) |
| Ground Clearance | 14.5 in (36.8 cm) |
| Hitch Towing Rating | N/A |
| Overall Vehicle Size (L x W x H) | 147.8 x 64 x 75 in (375.4 x 162.6 x 190.5 cm) |
| Payload Capacity | 900 lb (408 kg) |
| Wheelbase | 117 in (297.2 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Single Bore Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® |
| Doors | Front & Rear Full Doors |
| Electronic Power Steering | Standard with Quick Turn Rack |
| Hitch Type | Not Equipped |
| Instrumentation | PMX-2 Head Unit, AM/FM/WB tuner, compact digital media receiver, 2.7 in. full color display, TFT display delivers full viewing capabilities in full sun, Pandora control capabilities, Bluetooth audio streaming, LED button illumination, water resistant rotary encoder knob. Rockford Fosgate® Stage 1 Audio (Including 2 Front Co-axial Speakers) Dual-sweep Analog Dials w/ 4 in LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet |
| Lighting | LED Head Lights & Tail Lights Illuminated In-Cab Controls |
| Other Standard Features | Color Matched Seats, Premium Paint & Graphics, Color-Matched Dash, 660-W Charging System, 6-Position Pulse Bar, Tilt Steering, Poly Sport Roof, Rockford Fosgate Stage 1® Audio & PMX Unit, Adjustable 4-Point Subzero Harnesses, Front Tow Loop, Front Bumper |
| Seat Type | Bolstered Bucket Seats with Driver & Passenger Seat Sliders and Adjustable 4- Point Subzero Harnesses *2nd Row Raised Seating* |
| TIRES / WHEELS | |
| Front Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
| Rear Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
| Wheels | Cast Aluminum |
| SUSPENSION | |
| Electronic Suspension Control System | Not Equipped |
| Front Shocks | 2" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
| Front Suspension | Dual A-Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel |
| Rear Shocks | 2.5" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
| Rear Suspension | Trailing Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
