RZR XP 4 1000 ULTIMATE INDY RED SPECIFICATIONS
Find specifications below for the 2024 Polaris RZR XP 4 1000 Ultimate Indy Red Side by Side. Specs include ground clearance, wheelbase, box capacity, cargo system, engine braking system, instrumentation, lighting, travel, horsepower, engine, seat type and suspension.
| ENGINE & DRIVETRAIN | |
| Cooling | Liquid |
| Cylinders Displacement | 999cc |
| Drive System Type | High Performance True On-Demand AWD/2WD |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke DOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Horsepower | 114 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | 28 x 22 x 7 in (72.0 x 57.0 x 17.8 cm) |
| Box Capacity | 300 lb (136 kg) |
| Estimated Dry Weight | 1,901 lbs (862.3 kg) |
| Fuel Capacity | 9.5 gal (36 L) |
| Ground Clearance | 14.5 in (36.8 cm) |
| Hitch Towing Rating | N/A |

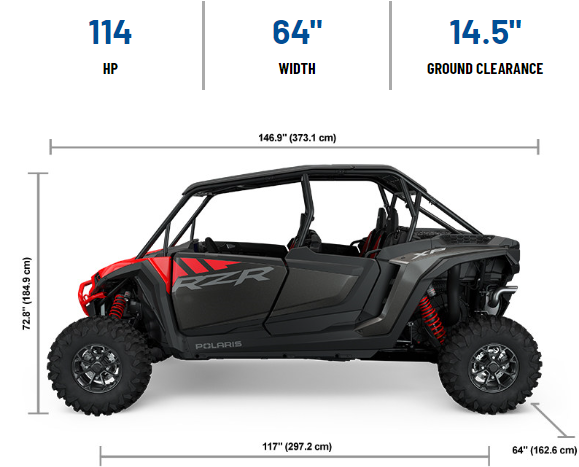

| Overall Vehicle Size (L x W x H) | 147.8 x 64 x 75 in (375.4 x 162.6 x 190.5 cm) |
| Payload Capacity | 900 lb (408 kg) |
| Wheelbase | 117 in (297.2 cm) |
| BRAKES | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Single Bore Rear Calipers |
| Parking Brake | Park In-Transmission |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride® |
| Doors | Front & Rear Full Doors |
| Electronic Power Steering | Standard with Quick Turn Rack |
| Hitch Type | Not Equipped |
| Instrumentation | 7” Glove-Touch Display: Digital Instrumentation, Built-In GPS, Group ride (cell-based or GPS based), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio, In- Vehicle Communications Capable With Optional Sena Headsets Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, Fault Code Display, DC Outlet, Ambient Temp. Rockford Fosgate® Stage 3 Audio (Including 2 Front & 2 Rear Co-axial Speakers and External 400W Amp) |
| Lighting | LED Head Lights & Tail Lights, Front & Rear LED Accent Lights, Illuminated In- Cab Controls |
| Other Standard Features | Color Matched Seats, Premium Paint & Graphics, Color-Matched Dash & Bumper, 900-W Charging System, 6-Position Pulse Bar, Tilt Steering, Poly Sport Roof, Rockford Fosgate® Stage 3 Audio, RIDE COMMAND, Rear Camera, Accent Lighting, Adjustable 4-Point Subzero Harnesses, Front Tow Loop, Front Bumper |
| Seat Type | Bolstered Bucket Seats with Driver & Passenger Seat Sliders and Adjustable 4- Point Subzero Harnesses *2nd Row Raised Seating* |
| TIRES / WHEELS | |
| Front Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
| Rear Tires | Trail Master X/T 2.0, 30 x 10-14 Radial Tire |
| Wheels | Cast Aluminum |
| SUSPENSION | |
| Electronic Suspension Control System | Not Equipped |
| Front Shocks | 2" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
| Front Suspension | Dual A-Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 16 in (40.6 cm) of Wheel Travel |
| Rear Shocks | 2.5" Walker Evans® Needle Shocks with 16- Position Adjustable Clickers |
| Rear Suspension | Trailing Arm with Stabilizer Bar and 20.5 in (52.07 cm) Usable Travel*, 18 in (45.7 cm) of Wheel Travel |
*Usable Travel is measured, with the vehicle in full droop, from the bottom of the tire to the bottom of the skid plate.
*Group Ride only available on North America models.
