OUTLAW 70 EFI VELOCITY BLUE / FIERCE FUCHSIA SPECIFICATIONS
Find specifications below for the 2024 Polaris Outlaw 70 EFI Velocity Blue / Fierce Fuchsia ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.
| ENGINE & DRIVETRAIN | |
| Cooling | Air |
| Cylinders Displacement | 70cc |
| Drive System Type | 2WD, Chain |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | 4-Stroke Single Cylinder |
| Fuel System/Battery | Electronic Fuel Injection |
| Transmission/Final Drive | Automatic, Forward Only, CVT |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | N/A |
| Box Capacity | N/A |
| Estimated Dry Weight | 278 lb (126 kg) |
| Front/Rear Rack | N/A / 25 lb (N/A / 11.3 kg) |
| Fuel Capacity | 1.5 Gal (5.68L) |
| Ground Clearance | 4 in (10.2 cm) |

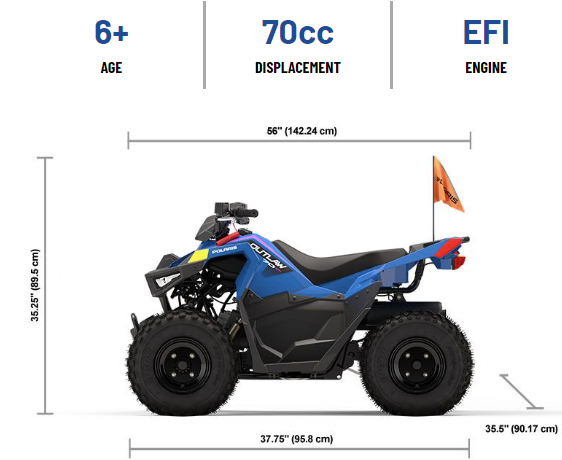

| Overall Vehicle Size (L x W x H) | 56 x 35.5 x 35.25 in (142.24 x 90.17 x 89.5 cm) |
| Payload Capacity | 140 lb (63.5 kg) |
| Seat Height | 25.75 in (654 mm) |
| Seating Capacity | 1 |
| Storage | N/A |
| BRAKES | |
| Front Brakes | Hydraulic Disc, 1 Per Wheel |
| Parking Brake | Single Handle Bar Mounted, Mechanical Locking |
| Rear Brakes | Hydraulic Disc, Axel Mounted |
| ADDITIONAL SPECIFICATIONS | |
| Color / Graphics | Velocity Blue / Fierce Fuchsia |
| Instrumentation | Check Engine Light, Mechanical Fuel Gauge Cap |
| Lighting | LED Running Lights, Single Rear Brakelights/Taillight |
| Other Standard Features | Horn, Tether, Electric Start, Safety Flag, Parent Adjustable Speed Limiter (1-15 mph), 1 Youth Helmet, Training DVD, Tool Kit, Battery Charge Port |
| Speed Limiting | The speed of this vehicle is restricted to under 10 MPH (16 km/h) at manufacture. The speed limiting device may be adjusted by supervising adults when they determine that their child is capable of handling additional speed. The unrestricted top speed for this model is 15 MPH (24 km/h) |
| TIRES / WHEELS | |
| Front Tires | 18x7, R8 |
| Rear Tires | 18x8, R8 |
| Wheelbase | 37.75 in (95.8 cm) |
| Wheels | 8" Stamped Steel |
| SUSPENSION | |
| Front Suspension | Single A-Arm with 4 in. (10.16 cm) Travel |
| Rear Suspension | Mono Shock Swingarm with 4 in. (10.16 cm) Travel |
