Specs: PHOENIX 200 AVALANCHE GRAY

PHOENIX 200 AVALANCHE GRAY SPECIFICATIONS

Find specifications below for the 2024 Polaris Phoenix 200 Avalanche Gray ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

ENGINE & DRIVETRAIN
Cooling	Air
Cylinders Displacement	196cc
Drive System Type	2WD, Chain
Engine Braking System (EBS)	Not Equipped
Engine Type	4-Stroke Single Cylinder
Fuel System/Battery	Carbureted
Transmission/Final Drive	Automatic PVT F/N/R; Shaft
DIMENSIONS
Bed Box Dimensions (L x W x H)	N/A
Box Capacity	N/A
Estimated Dry Weight	420 lb (191 kg)
Front/Rear Rack	N/A
Fuel Capacity	2.5 gal (9.5 L)
Ground Clearance	5.7 in (14.5 cm)

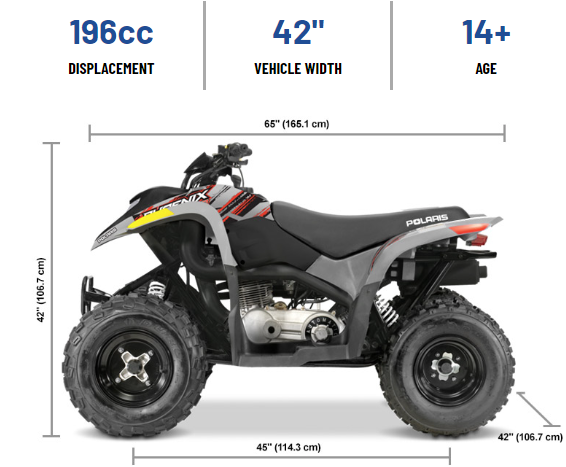

Overall Vehicle Size (L x W x H)	65 x 42 x 42 in (165.1 x 106.7 x 106.7 cm)
Payload Capacity	215 lb (98 kg)
Seat Height	32 in (81.3 cm)
Seating Capacity	1
Storage	N/A
BRAKES
Front Brakes	Front Hydraulic Disc
Parking Brake	Dual Handle Bar Mounted, Mechanical Hand Lever
Rear Brakes	Rear Mechanical Drum
ADDITIONAL SPECIFICATIONS
Color / Graphics	Avalanche Gray
Instrumentation	N/R Light
Lighting	Single Halogen Hi/Low Headlight, Single Rear Brakelight/Taillight
Other Standard Features	Safety Flag, Parent-Adjustable Speed Limiter, 1 Color Matched Youth Helmet, Training DVD
Speed Limiting	The speed of this vehicle is restricted to under 20 MPH (32 km/h) at manufacture. The speed limiting device may be adjusted by supervising adults when they determine that their child is capable of handling additional speed. The unrestricted top speed for this model is 38 MPH (61 km/h)
TIRES / WHEELS
Front Tires	21 x 7-10; Duro
Rear Tires	20 x 10-9 Duro
Wheelbase	45 in (114.3 cm)
Wheels	Stamped Steel
SUSPENSION
Front Suspension	Dual A-Arm with 7 in (17.8 cm) Travel
Rear Suspension	Mono-Shock Swingarm with 6.5 in (16.5 cm) Travel
