Specs: SCRAMBLER 850 STORM GRAY / RADAR BLUE

SCRAMBLER 850 STORM GRAY / RADAR BLUE SPECIFICATIONS

Find specifications below for the 2024 Polaris Scrambler 850 Storm Gray / Radar Blue ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

ENGINE & DRIVETRAIN
Active Descent Control	Not Equipped
Cooling	Liquid
Cylinders Displacement	2 / 850cc
Drive System Type	One Touch On-Demand AWD/2WD
Engine Braking System (EBS)	Equipped
Engine Type	ProStar 4-Stroke SOHC Twin Cylinder
Fuel System/Battery	Electronic Fuel Injection / 400 CCA
Horsepower	78 HP
Transmission/Final Drive	Automatic PVT P/R/N/L/H In-line Shifting
DIMENSIONS
Bed Box Dimensions (L x W x H)	N/A
Estimated Dry Weight	736 lbs (334 kg)
Front/Rear Rack	25 lb / 50 lb (11.3 kg / 22.7 kg)
Fuel Capacity	5.25 gal (19.9 L)
Ground Clearance	11.5 in (29 cm)

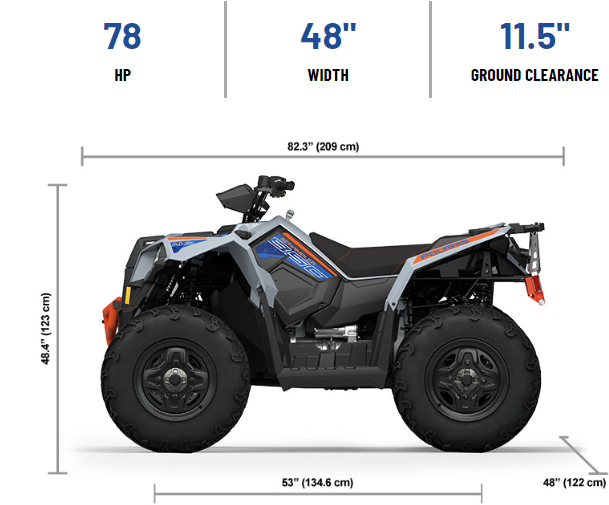

Overall Vehicle Size (L x W x H)	82.3 x 48 x 48.4 (209 x 122 x 123 cm)
Payload Capacity	290 lb (131 kg)
Person Capacity	1
Seat Height	35 in (89 cm)
Wheelbase	53 in (134.6 cm)
BRAKES
Front/Rear Brakes	Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake	Park In-Transmission / Lockable Hand Lever
ADDITIONAL SPECIFICATIONS
Cargo System	Lock & Ride, 1 Gal (4 L) Rear Storage
Front Suspension	Dual A-Arm 9 in (22.9 cm) Travel
Hitch Towing Rating	1,500 lb (680 kg)
Hitch Type	Standard 1.25 in (3.2 cm) Receiver
Instrumentation	All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting	50w High/Low Beam Headlights, Single Brakelight/Taillight
Other Standard Features	Cut and Sew Seat
Rear Suspension	Dual A-Arm, Rolled IRS, 10.25 in (26 cm) Travel
TIRES / WHEELS
Electronic Power Steering	Not Equipped
Front Tires	26 x 8 CST
Rear Tires	26 x 10 CST
Wheels	14 in. (35.6 cm) Steel
