SCRAMBLER XP 1000 S LIFTED LIME SPECIFICATIONS
Find specifications below for the 2024 Polaris Scrambler XP 1000 S Lifted Lime ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.
| ENGINE & DRIVETRAIN | |
| Active Descent Control | Not Equipped |
| Cooling | Liquid |
| Cylinders Displacement | 2 / 952cc |
| Drive System Type | One Touch On-Demand AWD/2WD |
| Engine Braking System (EBS) | Equipped |
| Engine Type | ProStar 4-Stroke SOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection / 400 CCA |
| Horsepower | 89 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H In-line Shifting |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | N/A |
| Estimated Dry Weight | 881 lbs (400 kg) |
| Front/Rear Rack | 25 lb / 50 lb (11.3 kg / 22.7 kg) |
| Fuel Capacity | 5.25 gal (19.9 L) |
| Ground Clearance | 14.5 in (36.8 cm) |

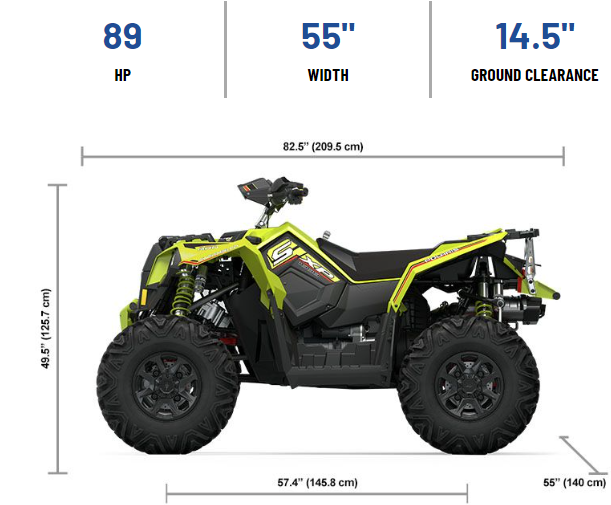

| Overall Vehicle Size (L x W x H) | 82.5 x 55 x 49.5 in (209.5 x 140 x 125.7 cm) |
| Payload Capacity | 290 lb (132 kg) |
| Person Capacity | 1 |
| Seat Height | 37 in (94 cm) |
| Wheelbase | 57.4 in (145.8 cm) |
| BRAKES | |
| Front/Rear Brakes | Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
| Parking Brake | Park In-Transmission / Lockable Hand Lever |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride, 1 Gal (4 L) Rear Storage |
| Front Suspension | Sealed High Clearance Arched Dual A-Arm 12.5 in (29.2 cm) Travel |
| Hitch Towing Rating | N/A |
| Hitch Type | N/A |
| Instrumentation | All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock |
| Lighting | Dual 65W High Beams, Dual 50w Low Beam Headlight |
| Other Standard Features | Pro Armor Light Bar, Front Bumper, Walker Evans 3-Way Adjustable Shocks, Painted Plastics, Painted Springs, 12 Volt Power Plug, Battery Charger, Pre-Wired for Winch and Hand/Thumb Warmers, Cut and Sew Seat |
| Rear Suspension | Sealed Dual A-Arm Rolled IRS, 14 in (35.6 cm) Travel |
| TIRES / WHEELS | |
| Electronic Power Steering | Multi Select EPS |
| Front Tires | 27 x 9 Duro PowerGrip II |
| Rear Tires | 27 x 9 Duro PowerGrip II |
| Wheels | 12" (30.5 cm) Aluminum |
