SPORTSMAN 570 EPS POLARIS PURSUIT CAMO SPECIFICATIONS
Find specifications below for the 2024 Polaris Sportsman 570 EPS Polaris Pursuit Camo ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.
| ENGINE & DRIVETRAIN | |
| Active Descent Control | Equipped |
| Cooling | Liquid |
| Cylinders Displacement | 567cc |
| Drive System Type | One Touch On-Demand AWD/2WD |
| Engine Braking System (EBS) | Equipped |
| Engine Type | ProStar 4-Stroke DOHC Single Cylinder |
| Fuel System/Battery | Electronic Fuel Injection / 340 CCA |
| Horsepower | 44 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H In-line Shifting |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | N/A |
| Estimated Dry Weight | 760 lb (345 kg) |
| Front/Rear Rack | 90 lb /180 lb (40.8 kg /81.6 kg) |
| Fuel Capacity | 4.5 gal (17.0 L) |
| Ground Clearance | 11.5 in (29 cm) |

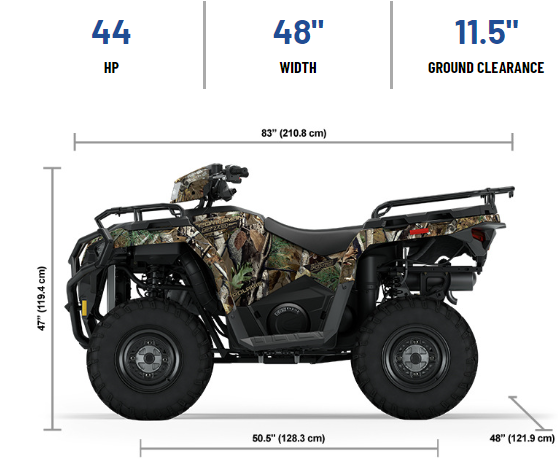

| Overall Vehicle Size (L x W x H) | 86 x 48 x 48 in (218.4 x 121.9 x 121.9 cm) |
| Payload Capacity | 485 lb (220 kg) |
| Person Capacity | 1 |
| Seat Height | 33.25 in (84.5 cm) |
| Wheelbase | 50.5 in (128.3 cm) |
| BRAKES | |
| Front/Rear Brakes | Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
| Parking Brake | Park In-Transmission / Lockable Hand Lever |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride Compatible 5 Gal (18.9L) Front Dry Storage |
| Front Suspension | Sealed MacPherson Strut With 8.2 in (20.8 cm) Travel |
| Hitch Towing Rating | 1,350 lb (612 kg) |
| Hitch Type | Standard 1.25 in (3.2 cm) Receiver |
| Instrumentation | All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light |
| Lighting | Halogen Pod & Bumper Lights, Triple 50w High Beams, Dual 50w Low Beams, Twin LED Brake Lights/Taillights |
| Other Standard Features | Front Trail Bumper, Front Rack Extender, Rear Rack Extender, 12 Volt Power Plug, Pre-Wired for Hand & Thumb Warmers, In Pod Battery Charger, Winch Mount Included, Front A-Arm Guards |
| Rear Suspension | Sealed Dual A-Arm, IRS 9.5 in (24.1 cm) Travel |
| RIDE COMMAND+ | Available |
| TIRES / WHEELS | |
| Electronic Power Steering | Multi Select EPS |
| Front Tires | 25x8-12 P373; 6 PLY |
| Rear Tires | 25x10-12 P373; 6 PLY |
| Wheels | 12 in. (30.5 cm) Steel |
