SPORTSMAN 570 RIDE COMMAND EDITION GRANITE GRAY SPECIFICATIONS
Find specifications below for the 2024 Polaris Sportsman 570 RIDE COMMAND Edition Granite Gray ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.
| ENGINE & DRIVETRAIN | |
| Active Descent Control | Equipped |
| Cooling | Liquid |
| Cylinders Displacement | 567cc |
| Drive System Type | One Touch On-Demand AWD/2WD |
| Engine Braking System (EBS) | Equipped |
| Engine Type | ProStar 4-Stroke DOHC Single Cylinder |
| Fuel System/Battery | Electronic Fuel Injection / 340 CCA |
| Horsepower | 44 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H In-line Shifting |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | N/A |
| Estimated Dry Weight | 883 lbs (400 kg) |
| Front/Rear Rack | 90 lb /180 lb (40.8 kg /81.6 kg) |
| Fuel Capacity | 4.5 gal (17.0 L) |
| Ground Clearance | 11.5 in (29 cm) |

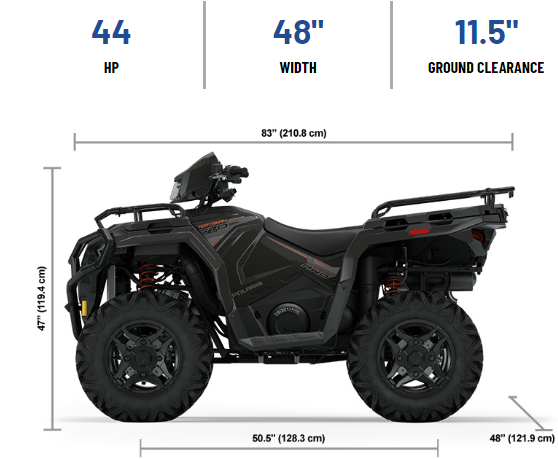

| Overall Vehicle Size (L x W x H) | 83 x 48 x 47 in (210.8 x 121.9 x 119.4 cm) |
| Payload Capacity | 485 lb (220 kg) |
| Person Capacity | 1 |
| Seat Height | 33.25 in (84.5 cm) |
| Wheelbase | 50.5 in (128.3 cm) |
| BRAKES | |
| Front/Rear Brakes | Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
| Parking Brake | Park In-Transmission / Lockable Hand Lever |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride Compatible 5 Gal (18.9L) Front Dry Storage |
| Front Suspension | Sealed Arched Dual A-Arm 8.9 in (22.6 cm) Travel |
| Hitch Towing Rating | 1,350 lb (612 kg) |
| Hitch Type | Standard 1.25 in (3.2 cm) Receiver |
| Instrumentation | 7" Glove Touch Display, All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Text and Call Notifications |
| Lighting | High Output LED POD High Beam, High Output LED Low Beam Headlights, Dual LED Brake lights/Taillights |
| Other Standard Features | 7" Glove Touch Display, Plow Mode, Group Ride, GPS Navigation, Bluetooth, 3,500 lb. Polaris HD Winch with Auto Stop and Synthetic Rope, Front Trail Bumper, Front and Rear Rack Extenders, Painted Plastics, Painted Springs, In Pod USB Charger, PIN Activated Secrity System (P.A.S.S.), Front and Rear A-Arm Guards, Underseat Storage Bag |
| Rear Suspension | Sealed Dual A-Arm, IRS 9.5 in. (24.1 cm) Travel |
| RIDE COMMAND+ | Available |
| TIRES / WHEELS | |
| Electronic Power Steering | Multi Select EPS |
| Front Tires | 26 x 8-14; DURO |
| Rear Tires | 26 x 10-14; DURO |
| Wheels | 14 in. (35.6 cm) Aluminum |
