SPORTSMAN 850 ULTIMATE TRAIL POLARIS PURSUIT CAMO SPECIFICATIONS
Find specifications below for the 2024 Polaris Sportsman 850 Ultimate Trail Polaris Pursuit Camo ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.
| ENGINE & DRIVETRAIN | |
| Active Descent Control | Equipped |
| Cooling | Liquid |
| Cylinders Displacement | 2 / 850cc |
| Drive System Type | One Touch On-Demand AWD/2WD |
| Engine Braking System (EBS) | Equipped |
| Engine Type | ProStar 4-Stroke SOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection / 400 CCA |
| Horsepower | 78 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H In-line Shifting |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | N/A |
| Estimated Dry Weight | 864 lbs (392 kg) |
| Front/Rear Rack | 120 lb (55 kg)/240 lb (110 kg) |
| Fuel Capacity | 5.25 gal (19.9 L) |
| Ground Clearance | 12 in (30.5 cm) |

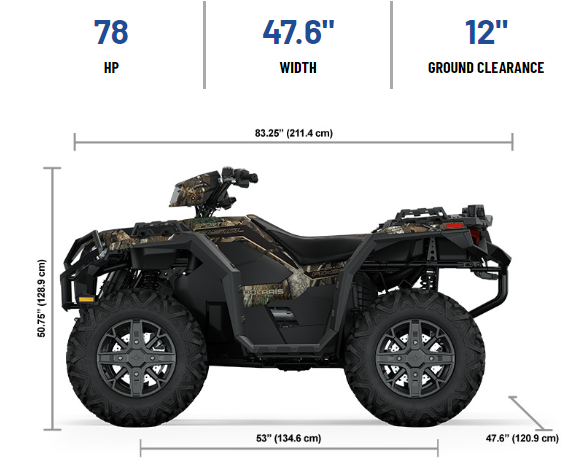

| Overall Vehicle Size (L x W x H) | 83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm) |
| Payload Capacity | 575 lb (261 kg) |
| Person Capacity | 1 |
| Seat Height | 37 in (94 cm) |
| Wheelbase | 53 in (134.6 cm) |
| BRAKES | |
| Front/Rear Brakes | Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
| Parking Brake | Park In-Transmission / Lockable Hand Lever |
| ADDITIONAL SPECIFICATIONS | |
| Front Suspension | Sealed High Clearance Arched Dual A-Arm 9" (22.9 cm) Travel |
| Hitch Towing Rating | 1,500 lb (680 kg) |
| Hitch Type | Standard 1.25 in (3.2 cm) Receiver |
| Instrumentation | All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet |
| Lighting | High Output LED POD High Beam, High Output LED Low Beam Headlights, Dual LED Brake lights/Taillights |
| Other Standard Features | 3,500 lb. Polaris HD Winch with Synthetic Rope, Front Ultimate Series Bumper, Rear Ultimate Series Bumper, Cut and Sew Seat, In Pod Battery Charge Port, Painted Plastics, Painted Springs, PIN Activated Secrity System (P.A.S.S.), Fender Flares, 6 Moveable Tie-Down Points |
| Rear Suspension | Sealed High Clearance Arched Dual A-Arm, Rolled IRS, 10.25" (26 cm) Travel |
| RIDE COMMAND+ | Available |
| TIRES / WHEELS | |
| Electronic Power Steering | Multi Select EPS |
| Front Tires | 27 X 9-14 DURO |
| Rear Tires | 27 X 11-14 DURO |
| Wheels | 14 in. (35.6 cm) Aluminum |
