Specs: SPORTSMAN TOURING 570 SONIC BLUE

SPORTSMAN TOURING 570 SONIC BLUE SPECIFICATIONS

Find specifications below for the 2023 Polaris Sportsman Touring 570 Sonic Blue ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

ENGINE & DRIVETRAIN
Active Descent Control	Not Equipped
Cooling	Liquid
Cylinders Displacement	567cc
Drive System Type	One Touch On-Demand AWD/2WD
Engine Braking System (EBS)	Not Equipped
Engine Type	ProStar 4-Stroke DOHC Single Cylinder
Fuel System/Battery	Electronic Fuel Injections / 220 CCA
Horsepower	44 HP
Transmission/Final Drive	Automatic PVT P/R/N/L/H In-line Shifting
DIMENSIONS
Bed Box Dimensions (L x W x H)	N/A
Estimated Dry Weight	731 lbs (332 kg)
Front/Rear Rack	90 lb / 180 lb (41 kg / 82 kg)
Fuel Capacity	6.75 gal (25.5 L)
Ground Clearance	11 in (27.9 cm)

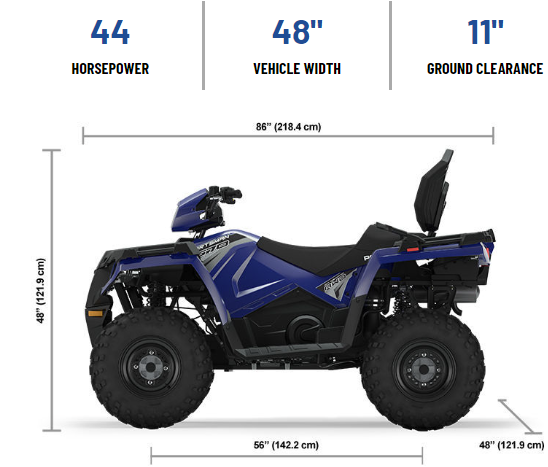

Overall Vehicle Size (L x W x H)	86 x 48 x 48 in (218.4 x 121.9 x 121.9 cm)
Payload Capacity	485 lb (220 kg)
Person Capacity	2
Seat Height	33.75 in (85.7 cm)
Wheelbase	56 in (142.2 cm)
BRAKES
Front/Rear Brakes	Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake	Park In-Transmission / Lockable Hand Lever
ADDITIONAL SPECIFICATIONS
Cargo System	Lock & Ride, 6 Gal (23 L) Front Dry Storage, 2 Gal (8 L) Rear Storage
Front Suspension	MacPherson Strut With 8.2 in (20.8 cm) Travel
Hitch Towing Rating	1,225 lb (555.7 kg)
Hitch Type	Standard 1.25 in (3.2 cm) Receiver
Instrumentation	All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting	50w High Beam, Dual 50w Low Beam Headlights, Dual Brakelights/Taillights
Rear Suspension	Dual A-Arm, IRS 9.5 in (24.1 cm) Travel
TIRES / WHEELS
Electronic Power Steering	Not Equipped
Front Tires	25 x 8-12; 489
Rear Tires	25 x 10-12; 489
Wheels	12 in. (30.5 cm) Steel
