Specs: SPORTSMAN XP 1000 RIDE COMMAND EDITION SILVER QUARTZ METALLIC

SPORTSMAN XP 1000 RIDE COMMAND EDITION SILVER QUARTZ METALLIC SPECIFICATIONS

Find specifications below for the 2023 Polaris Sportsman XP 1000 RIDE COMMAND Edition Silver Quartz Metallic ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

ENGINE & DRIVETRAIN
Active Descent Control	Equipped
Cooling	Liquid
Cylinders Displacement	2 / 952cc
Drive System Type	One Touch On-Demand AWD/2WD
Engine Braking System (EBS)	Equipped
Engine Type	ProStar 4-Stroke SOHC Twin Cylinder
Fuel System/Battery	Electronic Fuel Injection / 400 CCA
Horsepower	90 HP
Transmission/Final Drive	Automatic PVT P/R/N/L/H In-line Shifting
DIMENSIONS
Bed Box Dimensions (L x W x H)	N/A
Front/Rear Rack	120 lb (55 kg)/240 lb (110 kg)
Fuel Capacity	5.25 gal (19.9 L)
Ground Clearance	12 in (30.5 cm)
Hitch Tow Rating	1,500 lb (680 kg)
Hitch Type	Standard 1.25 in (3.2 cm) Receiver

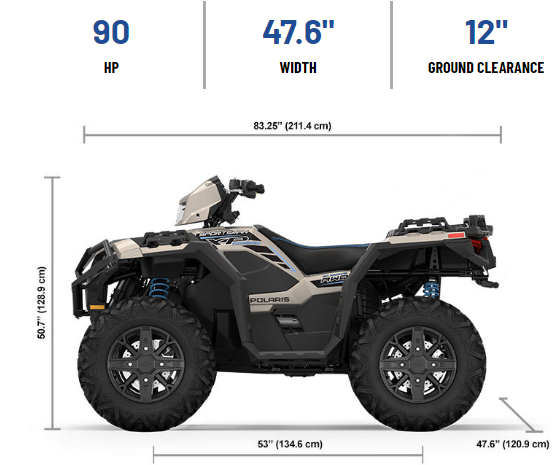

Overall Vehicle Size (L x W x H)	83.25 x 47.6 x 50.75 in (211.4 x 120.9 x 128.9 cm)
Payload Capacity	575 lb (261 kg)
Person Capacity	1
Seat Height	37 in (94 cm)
Wheelbase	53 in (134.6 cm)
BRAKES
Front/Rear Brakes	Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake	Park In-Transmission / Lockable Hand Lever
ADDITIONAL SPECIFICATIONS
Cargo System	Lock & Ride, 4 Gal (15 L) Front Dry Storage, 2 Gal (8 L) Rear Storage
Electronic Power Steering	Multi Select EPS
TIRES / WHEELS
Electronic Power Steering	Multi Select EPS
Front Tires	27 X 9-14 DURO
Rear Tires	27 X 11-14 DURO
Wheels	14 in. (35.6 cm) Aluminum
SUSPENSION
Front Suspension	Sealed High Clearance Arched Dual A-Arm 9" (22.9 cm) Travel
Rear Suspension	Sealed High Clearance Arched Dual A-Arm, Rolled IRS, 10.25" (26 cm) Travel
