SPORTSMAN XP 1000 S SILVER QUARTZ METALLIC SPECIFICATIONS
Find specifications below for the 2024 Polaris Sportsman XP 1000 S Silver Quartz Metallic ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.
| ENGINE & DRIVETRAIN | |
| Active Descent Control | Equipped |
| Cooling | Liquid |
| Cylinders Displacement | 2 / 952cc |
| Drive System Type | One Touch On-Demand AWD/2WD |
| Engine Braking System (EBS) | Equipped |
| Engine Type | ProStar 4-Stroke SOHC Twin Cylinder |
| Fuel System/Battery | Electronic Fuel Injection / 400 CCA |
| Horsepower | 88 HP |
| Transmission/Final Drive | Automatic PVT P/R/N/L/H In-line Shifting |
| DIMENSIONS | |
| Bed Box Dimensions (L x W x H) | N/A |
| Estimated Dry Weight | 970 lb (440 kg) |
| Front/Rear Rack | 200 lb / 300 lb (91 kg / 136 kg) |
| Fuel Capacity | 5.25 gal (19.9 L) |
| Ground Clearance | 14.5 in (36.8 cm) |

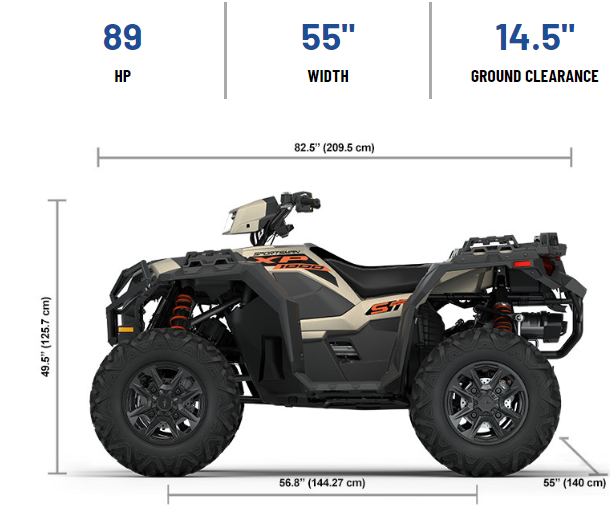

| Overall Vehicle Size (L x W x H) | 82.5 x 55 x 49.5 in (209.5 x 140 x 125.7 cm) |
| Payload Capacity | 715 lbs (324 kg) |
| Person Capacity | 1 |
| Seat Height | 37 in (94 cm) |
| Wheelbase | 56.8 in (144.27 cm) |
| BRAKES | |
| Front/Rear Brakes | Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
| Parking Brake | Park In-Transmission / Lockable Hand Lever |
| ADDITIONAL SPECIFICATIONS | |
| Cargo System | Lock & Ride 4 Gal (15L) Front, 2 Gal (8L) Rear |
| Front Suspension | Sealed High Clearance Arched Dual A-Arm 11.6 in (29.5 cm) Travel |
| Hitch Towing Rating | 1,750 lb (794 kg) |
| Hitch Type | Standard 2 in (5.08 cm) Receiver |
| Instrumentation | All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet |
| Lighting | High Output LED POD High Beam, High Output LED Low Beam Headlights, Dual LED Brake lights/Taillights |
| Other Standard Features | Front Bumper, Rear Bumper, 3,500 lb. Winch, Cut and Sew Seat, Painted Plastics, In Pod Battery Charge Port, PIN Activated Secrity System (P.A.S.S.), Fender Flares, 6 Moveable Tie-Down Points |
| Rear Suspension | Sealed Dual A-Arms Rolled IRS, 14 in (35.6 cm) Travel |
| TIRES / WHEELS | |
| Electronic Power Steering | Multi Select EPS |
| Front Tires | 27 x 9 Duro PowerGrip II |
| Rear Tires | 27 x 9 Duro PowerGrip II |
| Wheels | 14 in. (35.6 cm) Aluminum |
